Self-locking emergency exit/panic door lock WILKA 5495 E

Product code
MB00001097
All prices include VAT
From €157.35
From €157.35
In Stock
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.

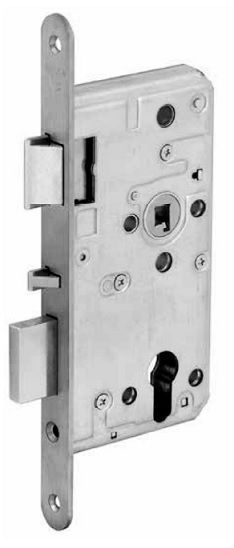

Self-locking emergency exit/panic door lock WILKA 5495 E
Manufacturer – WILKA

    • self-locking lock for rebated and non-rebated wooden and metal doors
    • compatible with electronic access system FSB isis®
    • corresponds with EN 179 technical requirements for emergency exit doors and with EN 1125 technical requirements for panic doors
    • suitable for use only with certified handle sets
    • corresponds with DIN 18251-1 requirements for security grade 3
    • self-locking function E
    • fireproof lock option available upon request
    • galvanised, closed lock case
    • with steel protectors against dust and sawdust
    • PZ keyhole
    • 8 mm handle hole with bearings (on request: 9 mm)
    • latch and bolt - nickel-plated metal
    • face plate - stainless steel matt satin
    • face plate width: 20 or 24 mm
    • automatic bolt throw: 20 mm
    • centre distance: 72 mm
    • standard spindle depth D: 65 mm
    • options for spindle depth D: 55 / 60 / 65 / 80 mm
    • total depth of lock case: 85 / 90 / 95 / 110 mm
    • not compatible with electric door openers
    • available finishes: stainless steel (face plate)
    •

Operation
As soon as the door closes, the lock automatically locks with a locking bolt. All bolts are retracted by pressing the handle and the door can be opened with a single movement (emergency exit function).
Interior side
Lever handle: latch and bolt are retracted by pressing the handle.
Exterior side
Inactive knob or pull handle: latch and bolt are key-retracted.

NB!
The key must always be taken out of the cylinder after locking/unlocking!


All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Self-locking emergency exit lock, E function, PZ72-55/20mm, stainless steel, LEFT
    Self-locking emergency exit lock, E function, PZ72-55/20mm, stainless steel, LEFT
    Code: SB00015357
    Art. Nr.: 834 5495/000001
    Price:
    From €157.35
    In Stock: 1 pc.
  2. Self-locking emergency exit lock, E function, PZ72-55/20mm, stainless steel, RIGHT
    Self-locking emergency exit lock, E function, PZ72-55/20mm, stainless steel, RIGHT
    Code: SB00015358
    Art. Nr.: 834 5495/000002
    Price:
    From €157.35
    In Stock: 0 pc.
bolt projection 20 mm
bundling options not compatible with EMS
centre distance PZ 72 mm
class as per EN 12209 (DIN 18251) class 3 according to EN 122209 / DIN 18251
compatibility standard German (DIN)
door direction when ordering please indicate door swing direction
evacuation function E
face plate width 20 / 24 mm
face plate finish nerūsējošais tērauds
face plate length 235 mm
face plate shape rounded
fire safety option for fire safety doors available on request
handle square spindle size 8 / 9 mm
installation type mortise
latch key-retractable
latch material nickel-coated
leaf material for wooden and metal doors
load capacity high
lock bolt single turn, automatic
lock bolt material nickel-coated
lock case galvanised closed
lock operation self-locking
lock type single-point lock for hinged doors
locking function PZ - with profile cylinder hole
Manufacturer WILKA
possible spindle depth 55/60/65/80 mm
purpose for interior doors / for exterior doors
sound insulation no
suitable for emergency exits complies with 179 and EN 1125 - emergency/panic door equipment
Evakuācijas durvju slēgšanas funkcijas. Informācija.
Evakuācijas un trauksmes durvis, kurās iebūvētas pēc EN 179 vai EN 1125 atbilstošas slēdzenes vai vairākpunktu slēdzenes, evakuācijas virzienā bez atslēgas var atvērt vienmēr - arī - aizslēgtā stāvoklī. Evakuācijas funkcija nosaka evakuācijas durvju ...
Durvju vērtņu virzieni saskaņā ar DIN 107
Vērtnes virzienu nosaka tajā durvju pusē, kur aizvērtā stāvoklī ir redzamas eņģes: redzamas eņģes vērtnes labajā pusē = DIN labā vērtne redzamas eņģes vērtnes kreisajā pusē = DIN kreisā vērtne
Slēgšanas veidi. Slēdzenes un rokturu garnitūras.
Galvenie slēgšanas veidi: PZ - profilciindra atslēgas caurums - izmantojams iekšdurvīm un ārdurvīm BB - atslēgas caurums vienkāršai istabas atslēgai - izmantojams iekšdurvīm WC - slēdzene ar aizgriezni tualetēm / vannasistabām BAC (F) - slēdzene...
Slēdzenes uzbūve un svarīgākie parametri.
Svarīgākie parametri, kas nepieciešami slēdzenes izvēlē: slēgšanas veids  ass dziļums (D) centru attālums priekšplāksnes platums un garums
Durvju furnitūras kopšanas norādījumi.
1. Slēdzeņu un furnitūras virsmas ir regulāri jākopj atbilstoši to materiālam un apstrādei. Metāla virsmām (nerūsējošais tērauds, cinkojums utt.) izmantot tikai atšķaidītus, maigus, ph-neitrālus tīrīšanas līdzekļus. Nekādā gadījumā neizmantot agresīvus...
