Access control panel HF5-Ble with fingerprint reader, IP66, 12V DC

Product code
SB00026706
Art. Nr.
HF5-BLE-WIFI
All prices include VAT
From €115.00
In Stock. Available: 3 pc.
Would like different processing and/or package?
pc.
The selected product is currently out of stock.

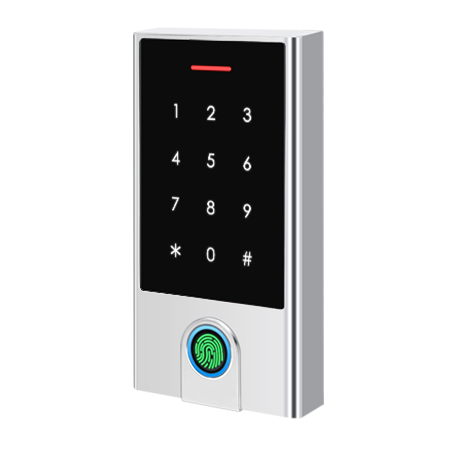

Access control panel HF5-BLE+WIFI with fingerprint reader

Manufacturer - SECUKEY (China)

  • access control panel with keypad and biometric reader
  • authorisation options: PIN code, magnetic card, fingerprint or mobile app
  • compatible with mobile app TTLOCK (iOS 7.0 / Android 4.3 and newer)
  • metal case, anti-vandal protection
  • waterproof, suitable for use outdoors
  • IP rating: IP66
  • card type: 13.56 MHz Mifare
  • Bluetooth BLE 4.2+ WIFI 2.4G connection
  • add or delete users via app
  • easy control with voice instructions
  • opening history control
  • compatible with gateway
  • possible to set time restriction
  • supports several languages
  • max number of PIN codes: 250 / unlimited dynamic codes
  • max number of fingerprint users: 500
  • max number of card users: 1000
  • card read range: 2-4 cm
  • case size: 140 x 68 x 25 mm
  • tone: silver + black
Manufacturer SECUKEY
Access type Magentic card / chip, PIN code, App, Fingerprint
Power supply 12V
App TTlock
material zinc alloy
colour / finish silver tone
operational temperature range from -20°C to +60°C
weight 500g
IP rating IP66
Bluetooth BLE 4.2
card read range 2-4 cm
Wi-Fi 2.4G
limit of relative humidity 0%RH ~ 85%RH
supply voltage 12 V DC
fingerprint memory 500
number of magnetic cards 1000
PIN code memory 250 (dynamic - unlimited)
weather resistance suitable for outdoor use
dynamic consumption ≤80mA
anti-vandal protection yes
Access code entry type touchscreen
Access type Mifare 13.56MHZ
