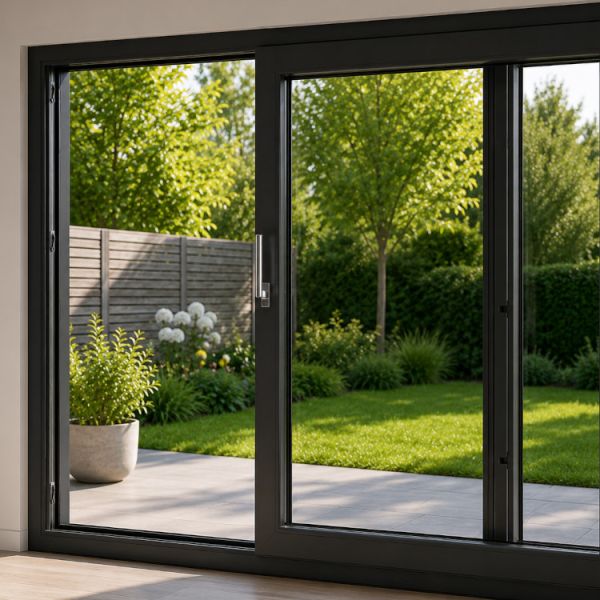

PORTAL ECO SLIDE CO parallel sliding/tilting system for windows and facade elements

PORTAL ECO SLIDE CO parallel sliding/tilting system for windows and facade elements

Manufacturer - SIEGENIA (Germany)

• a space-saving parallel sliding and tilt system for windows and patio doors
• an ideal solution for kitchens, bathrooms, offices, hotels, and other rooms with limited space
• a threshold just 45 mm high for efficient space planning and easy access to the balcony or terrace
• combines the ease and intuitive operation of a sliding system with the advantages of a casement window
• featuring the proven SIEGENIA TITAN central locking gear for uniform perimeter sealing, superior airtightness, and enhanced thermal insulation
• burglar resistance up to Class RC2
• suitable for all common PVC profile systems
• high resistance to mishandling; making it ideal for buildings with frequently changing users and heavy traffic
• pivot-mounted, lubrication and maintenance-free bogie wheels, thus preventing soiling
• the high-quality TITAN central locking gear with integrated sliding components ensures easy operation, smooth performance, and long service life
• specially designed handles ensure precise and quiet closing and opening without any play
• ergonomic, modern handles available in 8 colours, compatible with the SIEGENIA turn-and-tilt hardware range.
• large choice of versions ranging to design with cylinder

Benefits for fabricators

• quick assembly due to the wraparound sash hardware
• the number of required components has been reduced, simplifying inventory management
• compatibility with the tested SIEGENIA TITAN hardware system
• flexible configuration - you can choose between an economical or a design-oriented solution
• extensive customization options to meet various customer requirements
• also suitable for sliding systems with high design standards and no visible hardware components

Benefits for end users

• smooth and quiet opening, closing, and locking for maximum everyday comfort
• optional burglar resistance up to class RC2
• contemporary design featuring strikers with concealed screws and continuous locking rails on the locking side and centre section, combining enhanced security with a clean, modern appearance
• quiet and smooth operation, a durable and reliable hardware system
• ideal for installations where space is limited
• the 45 mm threshold provides easy, barrier-reduced access
• easy installation and adjustment

Technical data:  Profile system Rehau SYNEGO SLIDE

Sash parameters

• window shape: rectangular
• opening type: sliding
• material: plastic
• max. weight of the sash: 200 kg
• max. width-to-height ratio Q_H/B: 2,5
• max. profile weight: 4,55 kg/m
• number of sliding cycles: 20 000 (tested in accordance with QM 346)

System Application Range

• scheme: A
• max. sash weight: 200 kg
• frame width: up to 4000 mm
• grame height: up to 2610 mm
• sliding door width: 568 - 2000 mm
• sliding door height: 518 - 2500 mm
• sliding door thickness: 80 mm
• sash rebate width: 510 - 1942 mm
• sash rebate height: 460 - 2442 mm

Hardware Application Range

• scheme: A, C
• max. sash weight: 200 kg
• sash rebate width: 510 - 2000 mm
• sash rebate height: 460 - 2600 mm
• sash rebate height with handle position 250 mm and standard gear: 1200 - 2000 mm
• sash rebate height with handle position 1000 mm and standard locking gear: 1600 - 2600 mm

TECHNICAL DOCUMENTATION

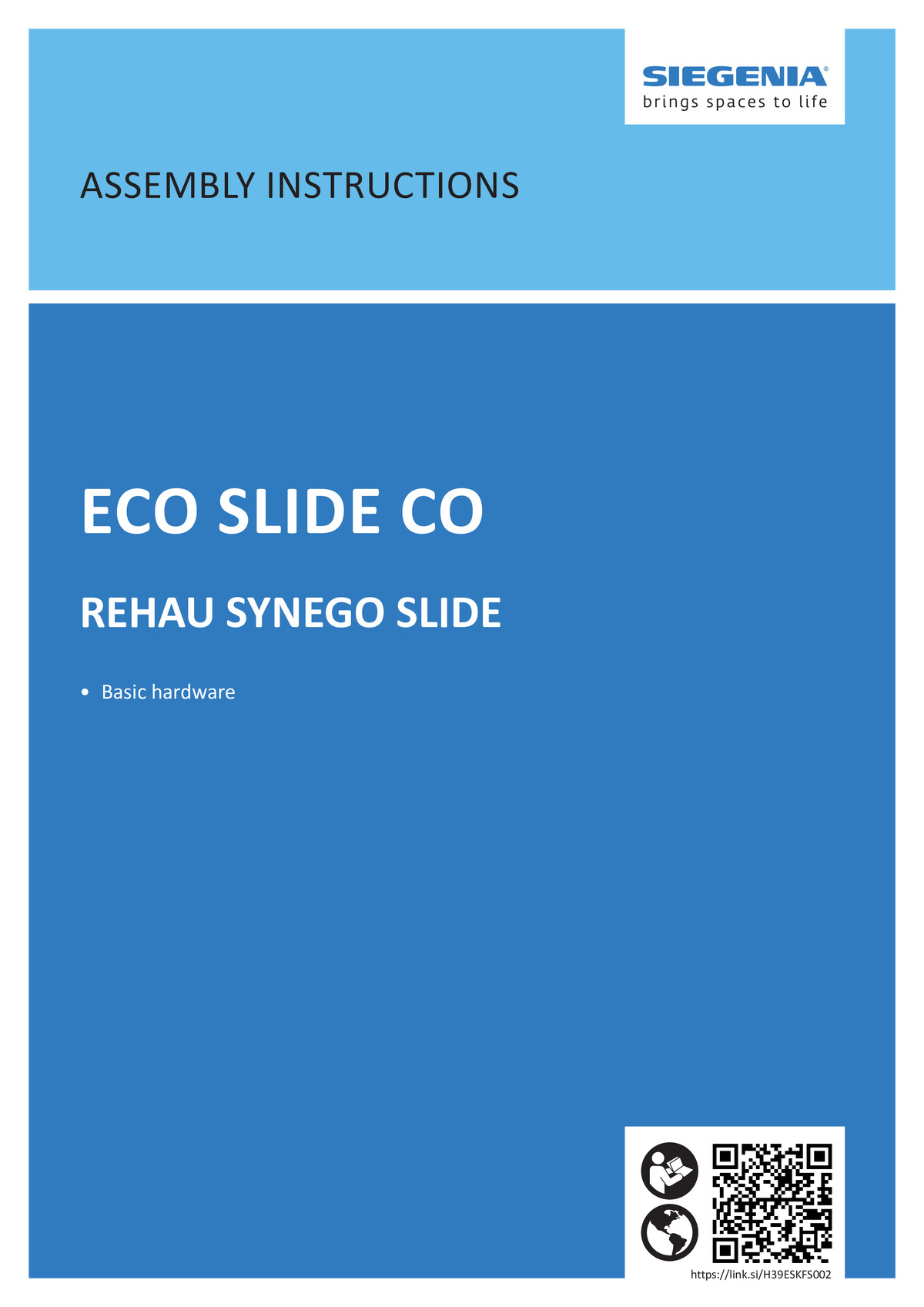

ECO SLIDE CO - Assembly Instructions REHAU SYNEGO SLIDE (EN)

VIDEO - Discover the PORTAL ECO SLIDE CO sliding system!

VIDEO - PORTAL ECO SLIDE CO installation
