PORTI 5312/5313 opening restrictor for wooden doors
Product code
MB00000161
All prices include VAT
From
€79.28
In Stock
Only %1 left
Questions and answers
Opening restrictor for wooden doors PORTI 5312/5313
Manufacturer - Athmer (Germany)
SIZES
PORTI 5313 (310) for wooden doors with wooden frame
upper frame clearance 3-10 mm
max leaf width: 610 - 719 mm
max door weight: 30 kg
milling size in leaf for guide rail (length x width x height): 525 x 15 x 12 mm
lever length: 310 mm
PORTI 5312 (400) for wooden doors with wooden frame
upper frame clearance 3-10 mm
max leaf width: 720 - 985 mm
max door weight: 30 kg
milling size in leaf for guide rail (length x width x height): 635 x 15 x 12 mm
ever length: 400 mm
Manufacturer - Athmer (Germany)
-
- stops and brakes the door at any desired point
- no damage to floors and floor coverings, protects walls and furniture against damage caused by doors slamming open
- protects door leaf and frame
- suitable for use in rooms with underfloor heating
- ideal for rooms with high demands on design, hygiene and accessibility (ex. hospitals, hotels)
- adjustable opening angle up to 120º
- suitable for both rebated and non-rebated doors
- guide rail made of anodised aluminium
- rotating bearings made of durable PVC, PU-elastomer damper
- mounting set includes all accessories for assembly into wooden and metal frames
- when selecting door hinges please take into account the extra load of the opening restrictor
- tested permanent functionality in accordance with DIN EN 13126-5, grade 4 requirements
SIZES

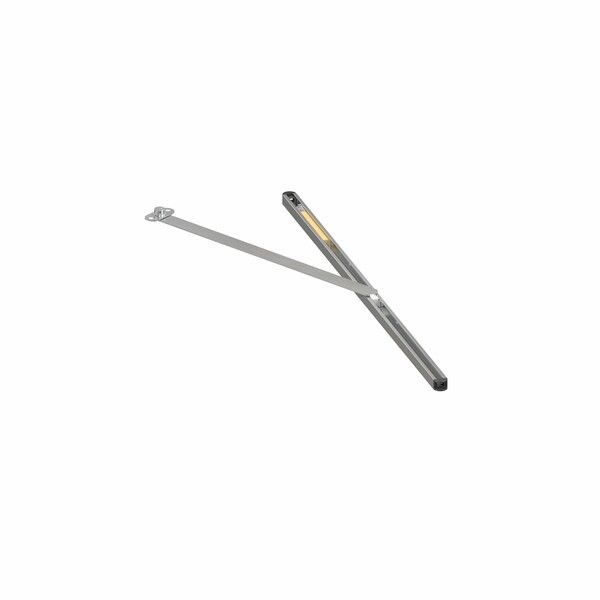

PORTI 5313 (310) for wooden doors with wooden frame
upper frame clearance 3-10 mm
max leaf width: 610 - 719 mm
max door weight: 30 kg
milling size in leaf for guide rail (length x width x height): 525 x 15 x 12 mm
lever length: 310 mm

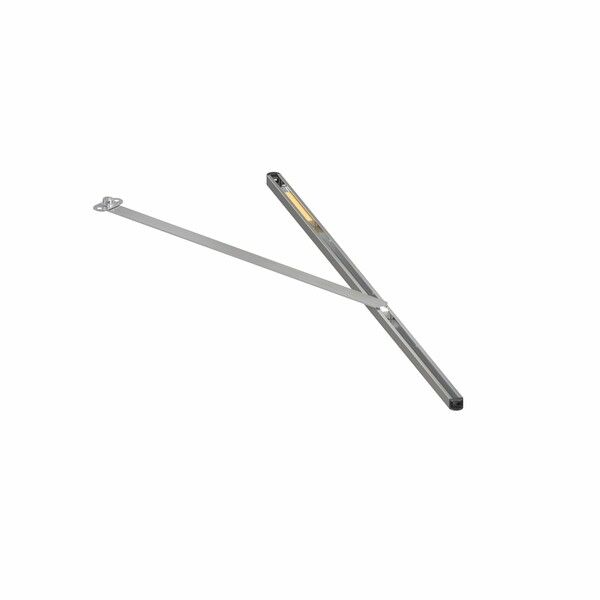

PORTI 5312 (400) for wooden doors with wooden frame
upper frame clearance 3-10 mm
max leaf width: 720 - 985 mm
max door weight: 30 kg
milling size in leaf for guide rail (length x width x height): 635 x 15 x 12 mm
ever length: 400 mm
Assembly instructions
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
PORTI 310 door restrictorCode: SB00006925Art. Nr.: 5313Price:From €79.28In Stock: 2 pc. -
PORTI 400 door restrictorCode: SB00006924Art. Nr.: 5312Price:From €79.28In Stock: 5 pc.
| Manufacturer | ATHMER |
|---|---|
| purpose | for interior doors / for exterior doors |
| mode of operation | mechanical |
| installation type | integrated into leaf |
| maximum opening angle | 120° |
| body dimensions | 525 x 16 x 12 mm / 635 x 16 x 12 mm |
| stroke length | 310 / 400 mm |
| distance between frame and door leaf | 3-10 mm (augšā) |
| leaf width | Min. 610 mm / 720 mm |
| leaf material | wood |
| leaf maximum weight | 30 kg |
| case material | wood / metal / aluminium |
| material | aluminium anodised |
