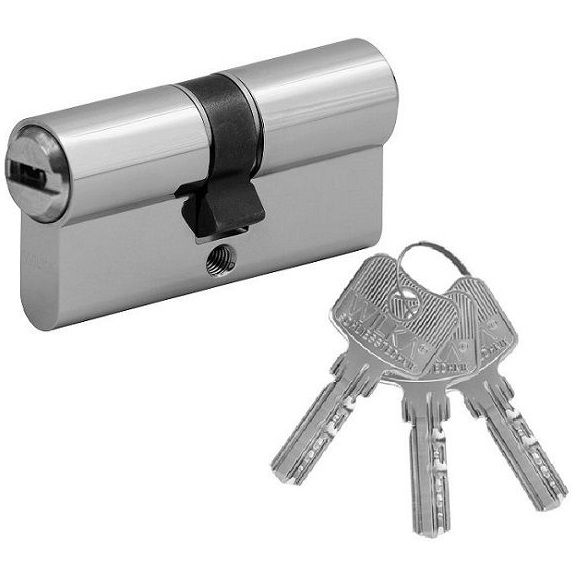

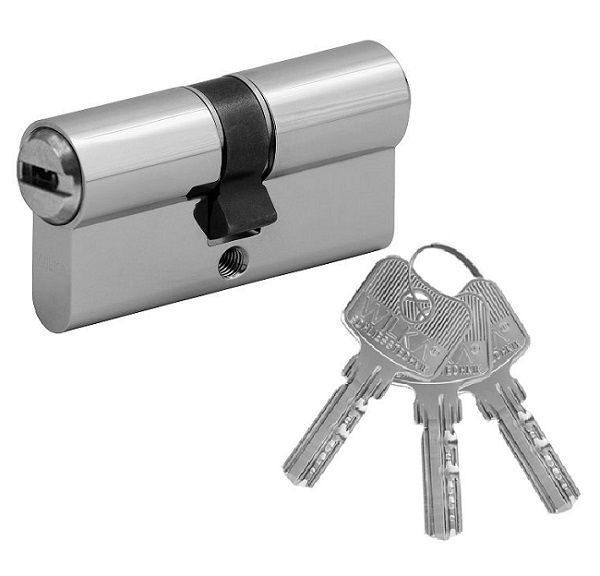

Profile cylinder Wilka 3600 B
Manufacturer - WILKA

    • horizontal key profile
    • complies with DIN 18 252 and DIN EN 1303 standards
    • highest locking code security grade 6 according to EN 1303: 2015
    • highest anti-intruder security level D according to EN 1303: 2015
    • highest long-term resistance grade 6 according to EN 1303:2015 – 100.000 test cycles
    • resistance class RC3 in accordance with EN 1627:2000 certificate
    • suitable for fire safety doors

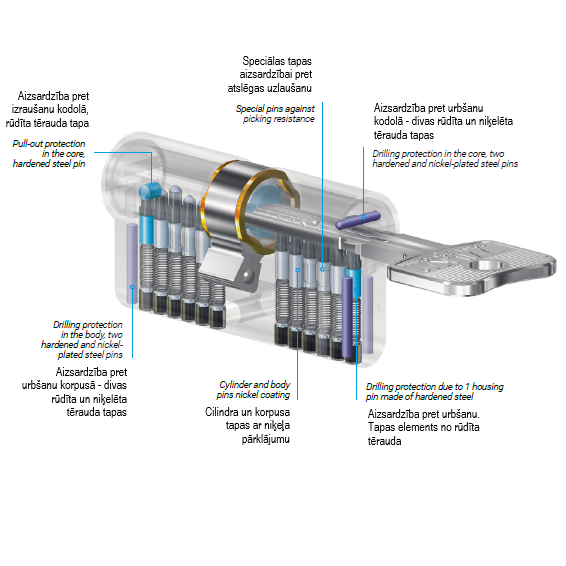

    • 6 spring pins on each locking side (starting from 30 mm)
    • 5 spring pins for short and asymmetrical cylinders (26,5mm)
    • special dumbbell-shaped pins increase picking resistance
    • core pins made from wear-resistant brass
    • one barrel pin made of hardened steel for increased anti-drill protection
    • stainless steel springs
    • spherical cylinder core ensures precise key operation
    • excellent material durability ensures enhanced key stability
    • 3 keys
    • installation screw M5
    • maximum length of one side: 90 mm
    • maximum total cylinder length: 180 mm
    • extension increment: 5 mm
    • classification code according to EN 1303:2015: 1 6 0 B 0 C 6 D
    • material:
      • brass matt
      • brass, nickel-plated
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Profile cylinder 3600 B 30-35, nickel-plated brass
    Profile cylinder 3600 B 30-35, nickel-plated brass
    Code: SB00015293
    Art. Nr.: 834 3600 B 30-35 MMV
    Price:
    From €27.73
    In Stock: 0 pc.
  2. Profile cylinder 3600 B 30-55, nickel-plated brass
    Profile cylinder 3600 B 30-55, nickel-plated brass
    Code: SB00015295
    Art. Nr.: 834 3600 B 30-55 MMV
    Price:
    From €40.52
    In Stock: 0 pc.
  3. Profile cylinder 3600 B 35-35, nickel-plated brass
    Profile cylinder 3600 B 35-35, nickel-plated brass
    Code: SB00015296
    Art. Nr.: 834 3600 B 35-35 MMV
    Price:
    From €35.45
    In Stock: 0 pc.
  4. Profile cylinder 3600 B 45-50, nickel-plated brass
    Profile cylinder 3600 B 45-50, nickel-plated brass
    Code: SB00015299
    Art. Nr.: 834 3600 B 45-50 MMV
    Price:
    From €43.91
    In Stock: 1 pc.
anti-intruder security class D according to EN 1303
anti-intruder security in accordance with EN1303 class D
extension increment 5 mm
fire safety certified for fire and smoke safety doors
key duplication can be duplicated at any locksmith
key duplication at SB UN PARTNERI Customer service centre not possible
locking cylinder standard Europrofile cylinder
maximum 1 side length 90 mm
maximum total length 180 mm
Manufacturer WILKA
material brass / steel
minimum 1 side length 30 mm
number of keys 3
number of locking lugs 6
profile cylinder type double cylinder
suitable for use in locking systems suitable for equal locking systems
Kā noteikt profilcilindra garumu
Nosakot cilindra garumu, jāņem vērā durvju biezums un uzliku biezums un konstrukcija. Cilindru standarta pagarinājuma solis ir 5 mm.
