Framed door lock KFV 28.72 PZW

Product code
MB00000835
All prices include VAT
From €34.56
From €34.56
In Stock
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.

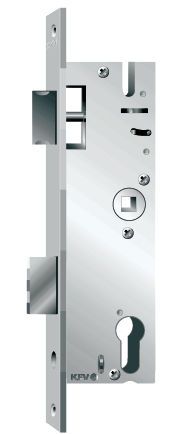

Framed door lock KFV 28.72 PZW
Manufacturer - KFV

    • adjustable, key-retractable latch
    • galvanised lock case, latch and bolt - bright nickel-plated
    • centre distance: 72 mm
    • suitable for both left and right hand doors
    • suitable for profile cylinder
    • suitable for interior and exterior doors with low to high usage
    • single throw deadbolt with projection 15 mm
    • spindle square hole: Ø 8 mm
    • spindle depth D options: 25 / 30 / 35 / 40 / 45 mm
    • rectangular face plate: 24 x 245 mm
    • classification code according to EN 12209: 2 B 7 0 0 C 2 B C 2 0
    • available finishes:
      • stainless steel (face plate)
      • light galvanised (face plate)





All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

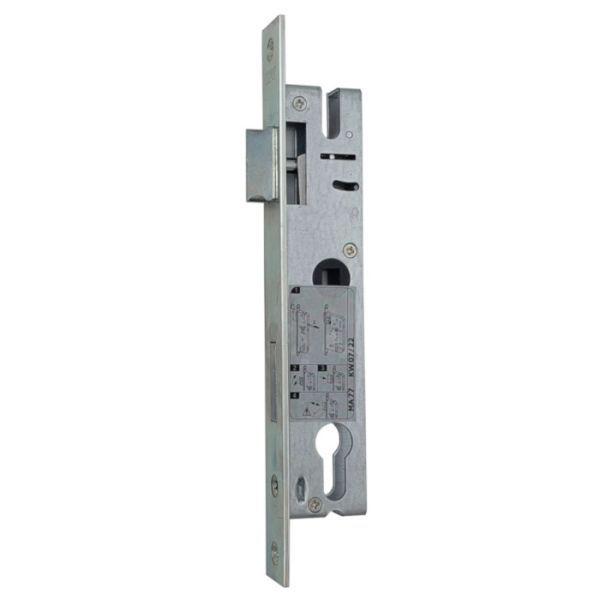

  1. Framed door lock 28.72-PZ 25/24, brightly galvanized
    Framed door lock 28.72-PZ 25/24, brightly galvanized
    Code: SB00003646
    Art. Nr.: 3441450
    Price:
    From €54.40
    In Stock: 1 pc.
  2. Framed door lock 28.72-PZ 35/20, brightly galvanized
    Framed door lock 28.72-PZ 35/20, brightly galvanized
    Code: SB00003687
    Art. Nr.: 3454942
    Price:
    From €34.56
    In Stock: 5 pc.
  3. Framed door lock 28.72-PZ 45/24, brightly galvanized
    Framed door lock 28.72-PZ 45/24, brightly galvanized
    Code: SB00003284
    Art. Nr.: 3112823
    Price:
    From €58.71
    In Stock: 5 pc.
bolt projection 15 mm
centre distance PZ 72 mm
class as per EN 12209 (DIN 18251) class 2 according to EN 12209
compatibility standard German (DIN)
door direction adaptable to leaf direction
face plate width 24 mm
face plate finish nerūsējošais tērauds / gaiši cinkota
face plate length 245 mm
face plate shape square
fire safety not suitable for fire safety doors
handle square spindle size 8 mm
installation type mortise
latch key-retractable
latch material bright nickel-coated
leaf material for framed doors
load capacity middle
lock bolt single turn
lock bolt material bright nickel-coated
lock case galvanised closed
lock operation mechanical
lock type single-point lock for hinged doors
locking function PZ - with profile cylinder hole
Manufacturer KFV
possible spindle depth 25/30/35/40/45 mm
purpose for interior doors / for exterior doors
sound insulation no
