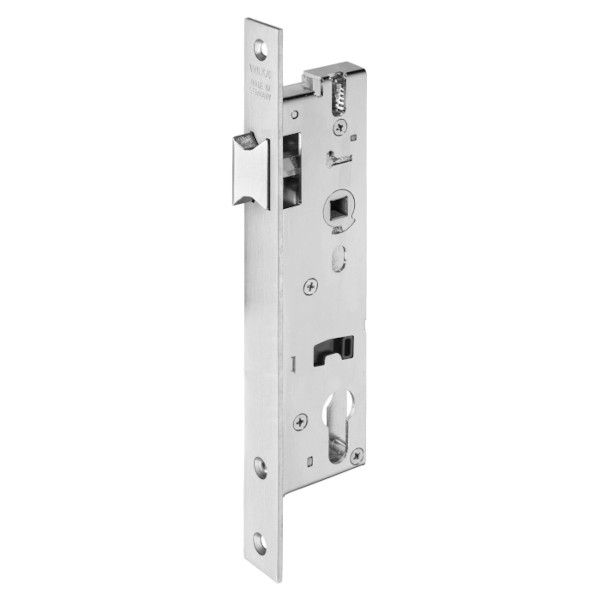

Mortise latch lock for frame doors WILKA 138F
Product code
MB00009679
All prices include VAT
From
€19.90
Only %1 left
Mortise latch lock for frame doors 138F
Manufacturer - WILKA-
- mortise latch lock for metal frame doors
- prepared for Euro profile cylinders
- non-lockable
- certified as per ar EN 12209
- fully zinc plated
- solid follower: 8 mm
- with action of the key on the latch bolt, reversible latch for right or left hand use,
- distance: 92 mm
- backset D: 25 / 30 / 35 / 40 / 45 mm
- casing widht: 40 / 45 / 50 / 55 / 60 mm
- end-to-end screw holes
- stainless steel forend, angular
- forend dimensions: 245 x 24 mm
Klasifikatora kods pēc EN 12209:
* neslēdzama - bez pretuzlaušanas aizsardzības
| 3 | M | 9 | 0 | 0 | F | -* | B | A | 2 | 0 |
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Mortise latch lock for metal frame doors 138F 92/35/24mm, stainless steelCode: SB00022330Art. Nr.: 138F/000021Price:From €19.90In Stock: 0 pc.
| Manufacturer | WILKA |
|---|---|
| lock type | single-point lock for hinged doors |
| lock operation | mechanical |
| installation type | mortise |
| purpose | for interior doors / for exterior doors |
| leaf material | for framed doors |
| load capacity | high |
| class as per EN 12209 (DIN 18251) | class 3 according to EN 122209 / DIN 18251 |
| fire safety | complies with EN standard fire safety requirements |
| compatibility standard | German (DIN) |
| possible spindle depth | 25/30/35/40/45 mm |
| door direction | universal use for DIN right and left hand doors |
| locking function | BAC - without key hole |
| centre distance PZ | 92 mm |
| lock case | galvanised closed |
| latch material | galvanised metal |
| latch | key-retractable |
| sound insulation | no |
| handle square spindle size | 8 mm |
| face plate shape | square |
| face plate width | 24 mm |
| face plate length | 245 mm |
| face plate finish | nerūsējošais tērauds |
