QL-3095 weather seal for wooden windows and doors - whole roll
Product code
MB00000168-IEP-1
All prices include VAT
From
€218.62
From
€218.62
In Stock
Only %1 left
Bulk price refers to 1 WHOLE ROLL.
Length of one whole roll - 250 m
Length of one whole roll - 250 m
QL-3095 weather seal for wooden windows and doors
Manufacturer - SCHLEGEL
Advantages
Materials
Technical parameters
Properties
Manufacturer - SCHLEGEL
Advantages
-
- excellent memory – returns to original shape after compression
- stability – low / no stretch gained by rigid insert or glass fibre internal cord
- outstanding compression – low compression forces, unaffected by temperature variance, soft and quiet door closure
- acoustics – excellent sound insulation
- thermal conductivity – unrivalled thermal performance, up to 10 times more efficient than other sealants
- paint and stain proof – properties unaffected by standard paints and stains
- protection – unaffected by rot, fungi, UV-light or ozone, dirt-repellent
- temperature – wide operating range under extremely cold and warm weather
- compatible with cleaning agents and all paints and varnishes, including acrylic paints
- efficient installation – zero waste technology, without corner cutting
- suitable also for automatic insertion or fixing
Materials
-
- polyurethane (PU) foam core - high durability, superior recovery performance
- polyethylene (PE) film - weather and UV-resistant
- glass fibre thread or polypropylene (PP) insert - prevents elongation and shrinkage
- smooth or embossed surface - dirt-repellent
Technical parameters
-
- milling width: 3.5 - 4 mm
- min. groove depth: 6.5 mm
- rebate: 10 mm
- seal gap: 3 - 6 mm
- package unit: 250 m
- available finishes: RAL 1001 beige, RAL 7001 silver grey, RAL 8019 grey brown, RAL 9005 black, RAL 9003 signal white
Properties
-
- compression set: < 15% after 1 hour relief of 50% compression at 70 °C for 24 hours (DIN 53572)
- compression force: approx. 15 N at 25% compression per 100 mm, < 10 N for lip profiles
- tested temperature range: -60 °C to +70 °C
- heat conductivity: 0.06 W/mK at 0 °C
- long-term continuous operation - no change of the length-related and partial joint permeability
- resistance to humidity: complies with DIN 18055, EN 12207 and EN 12208 to 600 Pa at single and French window
- compatibility with paints and varnishes: no adhesion, no hardening, no discolouration
- sound insulation: 43 dB at a window IV68 as a centre seal / 45 dB at a window IV76 as centre and overlap seal
- weather-resistant for up to 20 years
- Classification code according to EN 12365: W3 2 2 7 5
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Weather seal Schlegel QL-3095, 8x10, beige RAL1001 (packaging 250 m)Code: SB00013272-IEPArt. Nr.: QL-3095-40-RAL1001Price:From €218.62In Stock: 4 pack.
-
Weather seal Schlegel QL-3095, 8x10, white RAL9003 (packaging 250 m)Code: SB00013277-IEPArt. Nr.: QL-3095-70-RAL9003Price:From €218.62In Stock: 10 pack.
-
Weather seal Schlegel QL-3095, 8x10, black RAL9005Code: SB00013276-IEPArt. Nr.: QL-3095-80-RAL9005Price:From €218.62In Stock: 3 pack.
-
Weather seal Schlegel QL-3095, 8x10, brown RAL8019 (packaging 250 m)Code: SB00013273-IEPArt. Nr.: QL-3095-20-RAL8019Price:From €218.62In Stock: 2 pack.
-

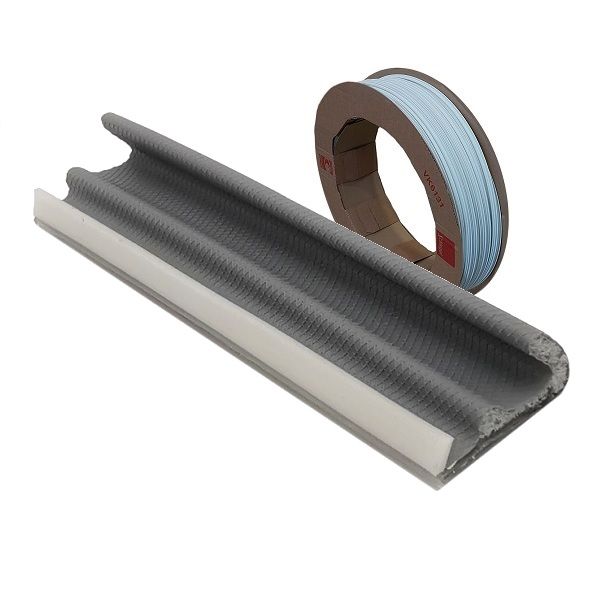

Weather seal Schlegel QL-3095, 8x10, grey RAL7001Code: SB00013275-IEPArt. Nr.: QL-3095-10-RAL7001Price:From €218.62In Stock: 2 pack.
Manufacturer | SCHLEGEL |
---|---|
seal type | weather seal |
purpose | for doors / for windows |
installation type | fitted in groove |
cutter | side |
leaf material | wood |
operational temperature range | from -60 °C to +70 °C |
packaging | roll of 150 m |
fire safety | not suitable for fire safety doors |
stop clearance | 3.0 - 6.0 mm |
rebate seal width | 10.0 mm |
material | polyurethane foam |
