Adjustable strike plate KFV SLK 881-083 A / DZM 402-00031
Product code
SLK 881-083A.DZM 402-00031
From
€10.82
This strike plate consists of a strike plate base body and an adjustable latch. Before ordering, please make sure you have selected an appropriate number for each component.
Adjustable strike plate KFV SLK 881-083 A / DZM 402-00031
Manufacturer – KFV (Germany)- suitable for both left and right hand doors
- consists of a strike plate base body and an adjustable latch of 3 different widths
- suitable for both rebated and non-rebated doors

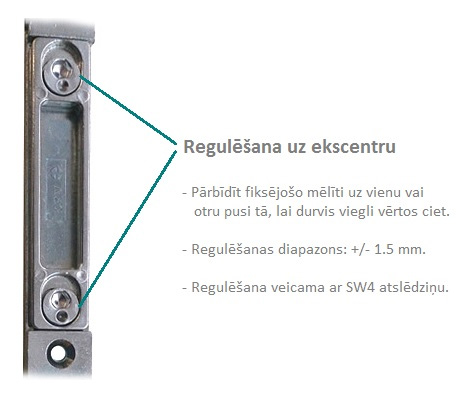

- with eccentric compression control for latches
- with additional screw holes on sides of the strike plate
- closed seats
- may be used as the central strike plate for multi-point locks

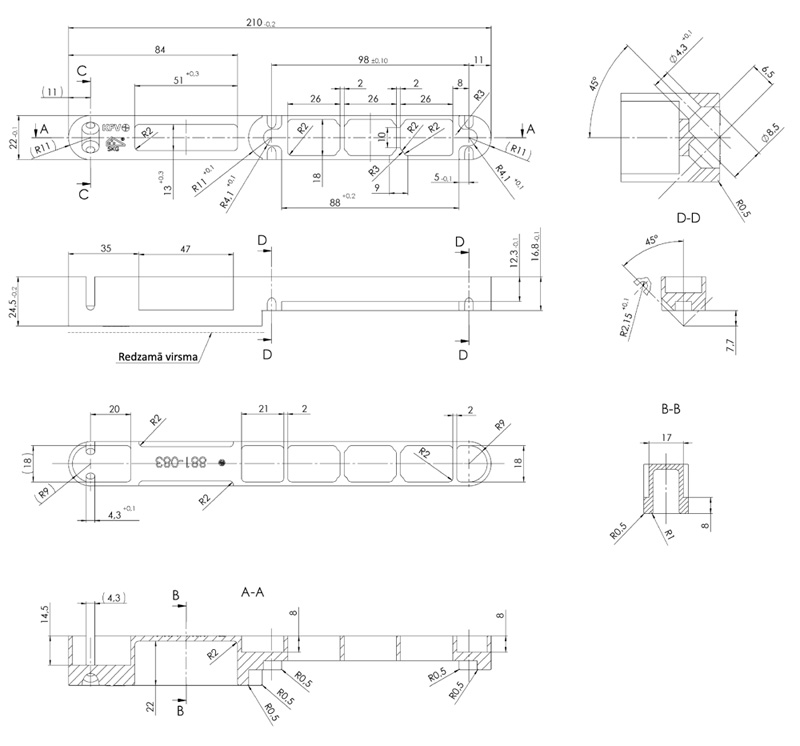

- size: 210 x 22 x 24 mm
- adjustment range +/- 1,5 mm
- latch width: 6 mm / 16 mm / 32 mm
- finish: light galvanised
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
SLK 881-083 A strike plate casing, lightly galvanisedCode: SB00004078Art. Nr.: 3947916Price:From €3.80In Stock: 66 pc. -

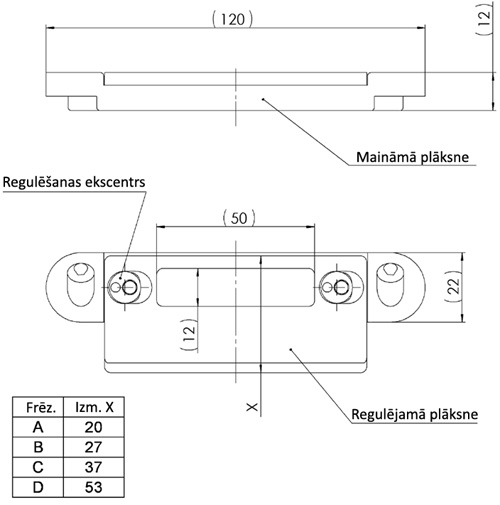

DZM 402-00031-B adjustable latch, brightly galvanized, 6mmCode: SB00003661Art. Nr.: 3448017Price:From €7.02In Stock: 66 pc.
-
DZM 402-00031-C adjustable latch, brightly galvanized, 16mmCode: SB00003662Art. Nr.: 3448018Price:From €7.02In Stock: 71 pc.
-
DZM 402-00031-D adjustable latch, brightly galvanized, 32mmCode: SB00003663Art. Nr.: 3448019Price:From €7.89In Stock: 54 pc.
| width | adjustable latch 6 / 16 / 32 mm |
|---|---|
| adjustment | adjustable |
| case material | wood |
| door construction | for non-rebated and rebated doors |
| door direction | universal use for DIN right and left hand doors |
| installation type | flush |
| lock type (lock points) | single-point/multi-point |
| Manufacturer | KFV |
| material | steel / stainless steel |
| purpose | for interior doors / for exterior doors |
| shape | rounded |
| strike plate compatibility | for DIN (German) standard locks (PZ, BB, WC) |
| strike plate type | with latch and/or bolt frame |
