Adjustable hinges for exterior doors with acoustic seal BAKA PROTECT 2010 2D FD MSTS

Product code
MB00008874
All prices include VAT
From €31.16
From €31.16
In Stock
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Adjustable hinges for exterior doors with acoustic seal BAKA PROTECT 2010 2D FD MSTS
Manufacturer - SIMONSWERK (Germany)

    • efficient and economic fitting, using the well-developed templates
    • integrated security pin (MSTS) for doors opening outwards
    • suitable also for doors with thin overlap
    • high load capacity: up to 120 kg (leaf 1000 x 2000 mm with 2 hinges; distance between 1st and 2nd hinge reference line: 1435 mm)
    • high-quality maintenance-free bearings
    • decorative heads in various shapes
    • two-dimensionally adjustable: side (+/- 3 mm), depth (+/- 3 mm)
    • threaded frame pin
    • concealed receiver in door leaf
    • knuckle length: 120 mm, diameter: 20 mm
    • milling diameter: 20 mm
    • overlap width: 15 mm, 18 mm, 20 mm
    • CE certificate
    • material:
      • steel, light galvanised
      • stainless steel
      • white tone (RAL9016)



Classification code according to DIN EN 1935
2 7 3 0 1 *1 0 10*2
*1 depending on surface finish
*2 test cycles in continuous operation with leaf of 120 kg






All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

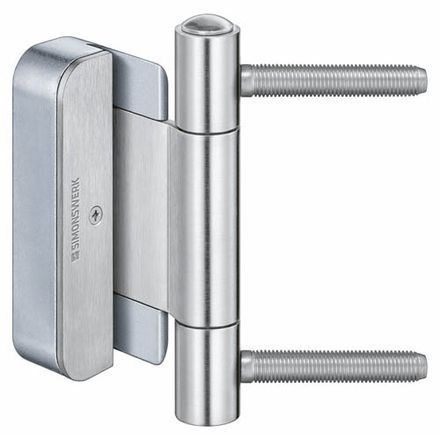

  1. BAKA protect 2010 2D FD hinge with MSTS, brightly galvanized
    BAKA protect 2010 2D FD hinge with MSTS, brightly galvanized
    Code: SB00008743
    Art. Nr.: 5 080815 0 11006
    Price:
    From €31.16
    In Stock: 5 pc.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. Decorative sleeve no.11 for BAKA 2000, brown (pack of 3)
    Decorative sleeve no.11 for BAKA 2000, brown (pack of 3)
    Code: SB00008796
    Art. Nr.: 5 100976 0 07103
    Price:
    From €4.14
    In Stock: 0 kit
  2. Decorative sleeve no.11 for BAKA 2000, white (pack of 3)
    Decorative sleeve no.11 for BAKA 2000, white (pack of 3)
    Code: SB00008795
    Art. Nr.: 5 100976 0 07003
    Price:
    From €4.14
    In Stock: 0 kit
  3. Decorative sleeve no.11 for BAKA 2000, chrom.F1 (pack of 3)
    Decorative sleeve no.11 for BAKA 2000, chrom.F1 (pack of 3)
    Code: SB00008794
    Art. Nr.: 5 100976 0 03703
    Price:
    From €7.85
    In Stock: 0 kit
  4. Decorative sleeve no.11 for BAKA 2000, gilded (pack of 3)
    Decorative sleeve no.11 for BAKA 2000, gilded (pack of 3)
    Code: SB00008793
    Art. Nr.: 5 100976 0 02403
    Price:
    From €7.85
    In Stock: 0 kit
  5. Decorative sleeve no.11 for BAKA 2000, browned (pack of 3)
    Decorative sleeve no.11 for BAKA 2000, browned (pack of 3)
    Code: SB00008792
    Art. Nr.: 5 100976 0 02103
    Price:
    From €7.85
    In Stock: 2 kit
adjustment adjustable
anti-corrosion resistance certified according to EN 1935 - depending on finish
anti-intruder protection yes, integrated safety pin
base assortment Yes
class as per EN 1935 class 2
collar ring 30 mm
cutter diameter 20 mm
distance between centres of lugs 91 mm
door construction for rebated doors
door direction universal use for DIN right and left hand doors
fastening elements must be ordered separately
fire safety not suitable for fire and smoke safety doors
groove for leaf seal yes
height 100 mm
hinge shape rounded
hinge type exterior door hinge
installation template available for sale or rent
knuckle diameter 20 mm
knuckle length 120 mm
leaf maximum weight 120 kg
leaf material wood
load capacity middle
lug amount 2
lug diameter 9.9 mm
lug length 57 mm
maintenance not required (self-lubricating bearings)
Manufacturer SIMONSWERK
material steel / stainless steel
overlap 15 / 18 / 20 mm
shells BAKA 2000 Nr.11 dažādās krāsās (kompl. 3 gab.)
spindle diameter 10 mm
suitable for aluminium frames not suitable
suitable for industrial frames suitable
suitable for steel frames not suitable
suitable for timber frames suitable
