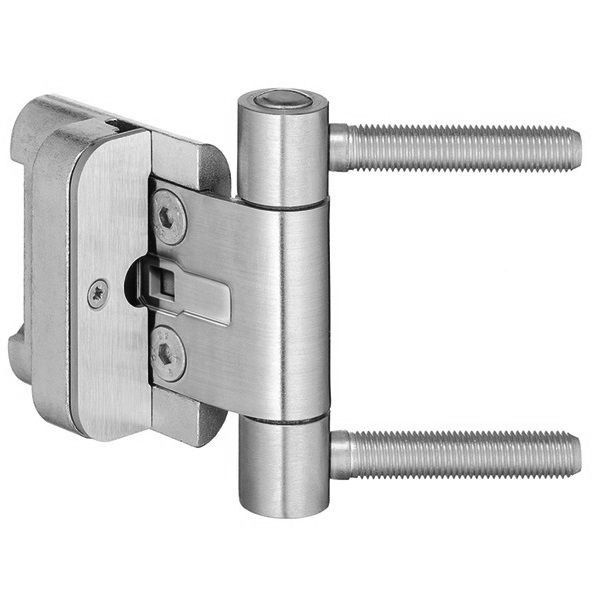

Adjustable hinges for exterior doors BAKA 2D 20 RZ 57

Adjustable hinges for exterior doors BAKA 2D 20 RZ 57
Manufacturer - SIMONSWERK (Germany)

• • two-dimensionally adjustable: side and depth +/- 3 mm
  • side-adjustable, without removing the door from its frame
  • suitable for both left and right hand doors
  • suitable also for doors with thin overlap, from 15 mm
  • complies with DIN V EN 1627 ff requirements
  • security ensured by concealed receiver in door leaf
  • efficient fitting using templates
  • maintenance-free bearings
  • max load: 100 kg (leaf 1000 x 2000 mm with 2 hinges; distance between 1st and 2nd hinge reference line: 1435 mm)
  • threaded frame pin: 57 mm
  • material:

• • • steel, light galvanised
    • stainless steel

---

---

Classification code according to DIN EN 1935
3 7 4 0 1 ^*1 0 11^*2
1 depending on surface finish
2 test cycles in continuous operation with leaf of 100 kg

---

---
