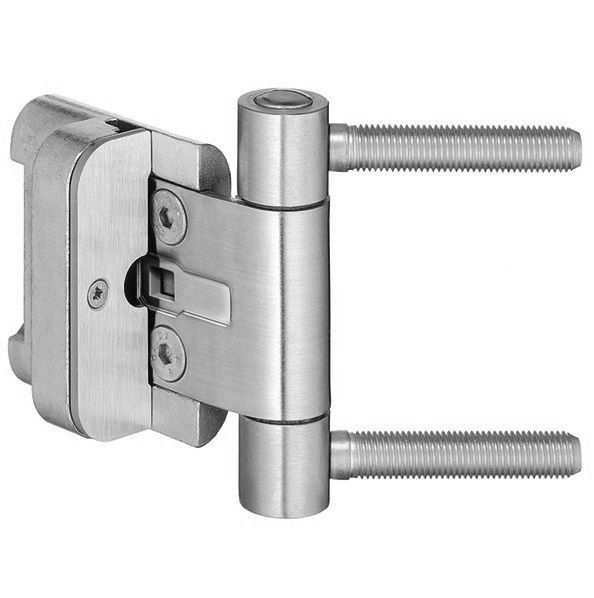

Adjustable hinges for exterior doors BAKA 2D 20 RZ 57 MSTS
Product code
MB00008873
All prices include VAT
From
€18.09
Only %1 left
Adjustable hinges for exterior doors BAKA 2D 20 RZ 57 MSTS
Manufacturer - SIMONSWERK (Germany)
Classification code according to DIN EN 1935
3 7 4 0 1 *1 0 11*2
1 depending on surface finish
2 test cycles in continuous operation with leaf of 100 kg
Manufacturer - SIMONSWERK (Germany)
-
- integrated security pin (MSTS) for doors opening outwards
- two-dimensionally adjustable: side and depth +/- 3 mm
- side-adjustable, without removing the door from its frame
- suitable for both left and right hand doors
- suitable also for doors with thin overlap, from 15 mm
- complies with DIN V EN 1627 ff requirements
- security ensured by concealed receiver in door leaf
- efficient fitting using templates
- maintenance-free bearings
- max load: 100 kg (leaf 1000 x 2000 mm with 2 hinges; distance between 1st and 2nd hinge reference line: 1435 mm)
- threaded frame pin: 57 mm
- material:
-
-
- steel, light galvanised
- stainless steel
-
Classification code according to DIN EN 1935
3 7 4 0 1 *1 0 11*2
1 depending on surface finish
2 test cycles in continuous operation with leaf of 100 kg
BAKA 2D 20 Installation and adjustment instructions
Documents
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Entrance door hinge with security pin BAKA 2D 20 RZ57,, light galvanizedCode: SB00008679Art. Nr.: 500001409Price:From €18.09In Stock: 30 pc.
Additional products
- Products
- Price
- In Stock
- Quantity
-

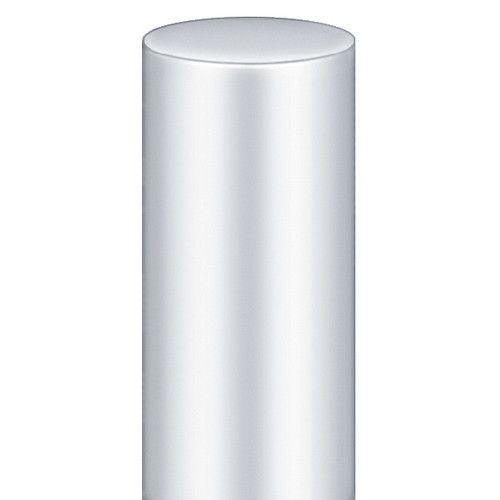

Decorative sleeves No.8, whiteCode: SB00008682Art. Nr.: 500001743Price:From €4.04In Stock: 10 kit
-

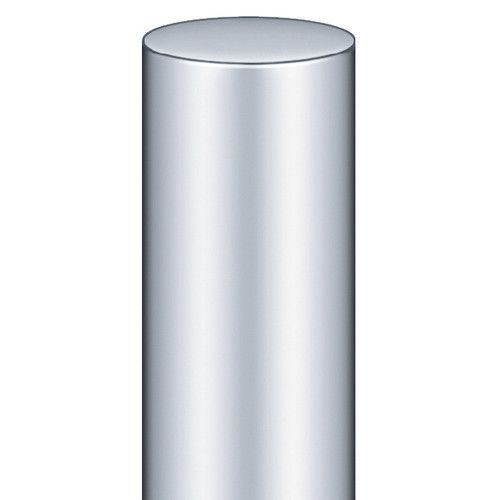

Decorative sleeves Nr.8, F1Code: SB00008680Art. Nr.: 500001742Price:From €6.36In Stock: 53 kit
-

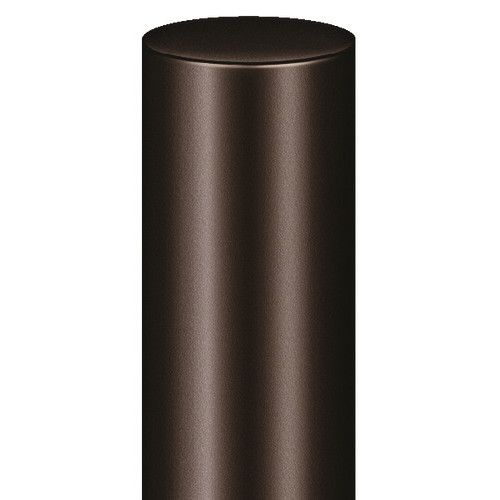

Decorative sleeves No.8, brownCode: SB00008777Art. Nr.: 500001744Price:From €3.47In Stock: 2 kit
-

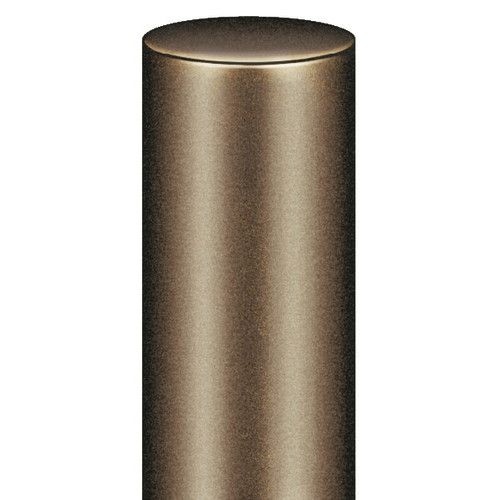

Decorative sleeves No.8, bronzeCode: SB00008775Art. Nr.: 500001741Price:From €6.36In Stock: 15 kit
-

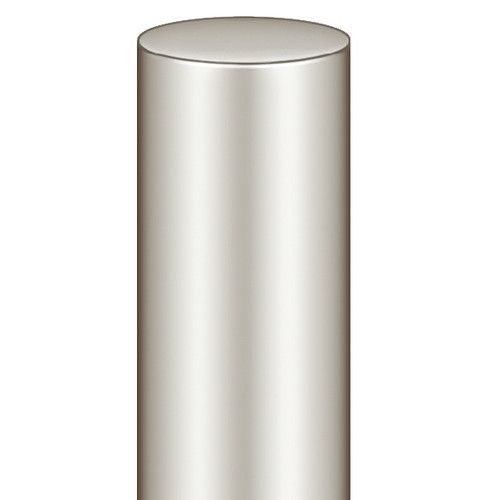

Decorative sleeves No.8, F2Code: SB00008774Art. Nr.: 500001740Price:From €6.36In Stock: 0 kit
-

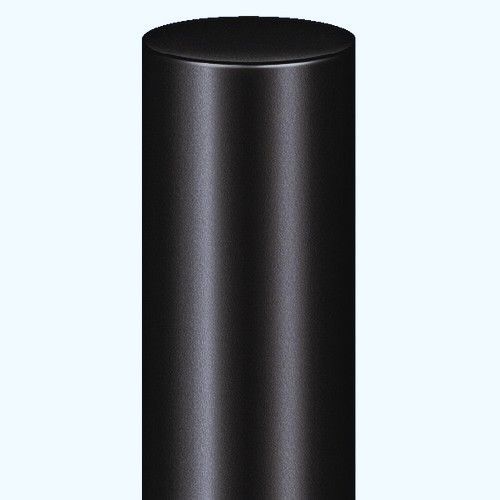

Eņģu čaula Nr.8 (3-daļīga), melnaCode: SB00008778Art. Nr.: 500001745Price:From €4.22In Stock: 11 kit
| Manufacturer | SIMONSWERK |
|---|---|
| hinge type | exterior door hinge |
| hinge shape | rounded |
| door construction | for rebated doors |
| overlap | no 15 mm |
| door direction | universal use for DIN right and left hand doors |
| class as per EN 1935 | class 3 |
| fire safety | not suitable for fire and smoke safety doors |
| distance between centres of lugs | 67 mm |
| lug diameter | 9.9 mm |
| lug length | 40 mm |
| lug amount | 2 |
| leaf material | wood |
| load capacity | middle |
| leaf maximum weight | 100 kg |
| suitable for aluminium frames | not suitable |
| suitable for steel frames | not suitable |
| suitable for industrial frames | suitable |
| suitable for timber frames | suitable |
| anti-corrosion resistance | certified according to EN 1935 - depending on finish |
| adjustment | adjustable |
| groove for leaf seal | no |
| anti-intruder protection | yes, integrated safety pin |
| knuckle length | 86 mm |
| knuckle diameter | 20 mm |
| collar ring | 30 mm |
| spindle diameter | 10 mm |
| height | 99 mm |
| maintenance | not required (self-lubricating bearings) |
| shells | BAKA Nr.8 dažādās krāsās (kompl. 3 gab.) |
| installation template | available for sale or rent |
| fastening elements | must be ordered separately |
| material | steel / stainless steel |
| Series | BAKA |
