Adjustable hinges for exterior doors BAKA Protect 2010 2D
Product code
MB00000099
All prices include VAT
From
€24.27
From
€24.27
In Stock
Only %1 left
Adjustable hinges for exterior doors BAKA Protect 2010 2D
Manufacturer - SIMONSWERK (Germany)
Classification code according to DIN EN 1935
2 7 3 0 1 *1 0 10*2
*1 depending on surface finish
*2 test cycles in continuous operation with leaf of 120 kg
Manufacturer - SIMONSWERK (Germany)
-
- efficient and economic fitting, using the well-developed templates
- suitable also for doors with thin overlap
- high load capacity: up to 120 kg (leaf 1000 x 2000 mm with 2 hinges; distance between 1st and 2nd hinge reference line: 1435 mm)
- high-quality maintenance-free bearings
- hinge sleeves in various finishes
- two-dimensionally adjustable: side and depth +/- 3 mm
- threaded frame pin
- concealed receiver in door leaf
- knuckle length: 120 mm, diameter: 20 mm
- milling diameter: 20 mm
- overlap width: 15 mm, 18 mm
- suitable for profiles of any geometry
- suitable also for doors of higher level of anti-intruder security
- CE certificate
- material:
-
-
- steel, light galvanised
- stainless steel
-
Classification code according to DIN EN 1935
2 7 3 0 1 *1 0 10*2
*1 depending on surface finish
*2 test cycles in continuous operation with leaf of 120 kg
Montāžas parametri un regulēšana
Documents
Additional information
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

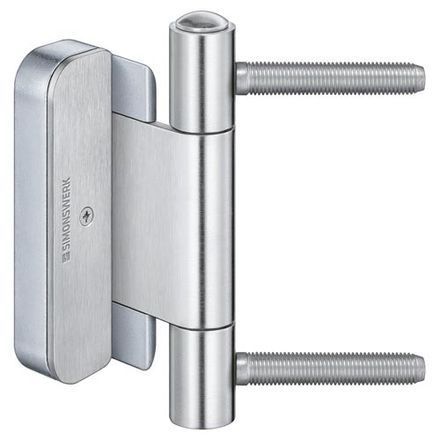

Entrance door hinge BAKA protect 2010 2D, light galvanizedCode: SB00008740Art. Nr.: 5 080812 0 11006Price:From €24.27In Stock: 0 pc.
Additional products
- Products
- Price
- In Stock
- Quantity
-
Decorative sleeve no.11 for BAKA 2000, browned (pack of 3)Code: SB00008792Art. Nr.: 5 100976 0 02103Price:From €7.71In Stock: 2 kit
-
Decorative sleeve no.11 for BAKA 2000, gilded (pack of 3)Code: SB00008793Art. Nr.: 5 100976 0 02403Price:From €7.71In Stock: 0 kit
-
Decorative sleeve no.11 for BAKA 2000, chrom.F1 (pack of 3)Code: SB00008794Art. Nr.: 5 100976 0 03703Price:From €7.71In Stock: 0 kit
-
Decorative sleeve no.11 for BAKA 2000, white (pack of 3)Code: SB00008795Art. Nr.: 5 100976 0 07003Price:From €4.07In Stock: 0 kit
-
Decorative sleeve no.11 for BAKA 2000, brown (pack of 3)Code: SB00008796Art. Nr.: 5 100976 0 07103Price:From €4.07In Stock: 0 kit
| adjustment | adjustable |
|---|---|
| anti-corrosion resistance | certified according to EN 1935 - depending on finish |
| anti-intruder protection | no |
| base assortment | Yes |
| class as per EN 1935 | class 2 |
| collar ring | 30 mm |
| cutter diameter | 20 mm |
| distance between centres of lugs | 91 mm |
| door construction | for rebated doors |
| door direction | universal use for DIN right and left hand doors |
| fastening elements | must be ordered separately |
| fire safety | not suitable for fire and smoke safety doors |
| groove for leaf seal | no |
| height | 100 mm |
| hinge shape | rounded |
| hinge type | exterior door hinge |
| installation template | available for sale or rent |
| knuckle diameter | 20 mm |
| knuckle length | 120 mm |
| leaf maximum weight | 120 kg |
| leaf material | wood |
| load capacity | high |
| lug amount | 2 |
| lug diameter | 9.9 mm |
| lug length | 57 mm |
| maintenance | not required (self-lubricating bearings) |
| Manufacturer | SIMONSWERK |
| material | steel / stainless steel |
| overlap | 15 / 18 mm |
| shells | BAKA 2000 Nr.11 dažādās krāsās (kompl. 3 gab.) |
| spindle diameter | 10 mm |
| suitable for aluminium frames | not suitable |
| suitable for industrial frames | suitable |
| suitable for steel frames | not suitable |
| suitable for timber frames | suitable |
