Adjustable hinge set for PVC exterior doors SIKU RB 5010 3D MSTS with anti-lift protection

Product code
MB00010014
SIMONSWERK View catalogue of manufacturer
main product photo
All prices include VAT
From €28.48
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
with industry profesionals
Book a consultation
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Service
Manufacturers' catalogues, product documentation etc.

Adjustable hinge set for PVC exterior doors SIKU RB 5010 3D MSTS with anti-lift protection

Manufacturer - SIMONSWERK (Germany)

  • suitable for PVC profile geometry
  • also suitable for narrow sash profiles
  • integrated axis lock (MSTS) for outward-opening doors
  • high-quality bearing technology that requires no special maintenance
  • adjustment: SIKU RB adjustment uses a single tool; all adjustment operations are performed on the hinge side of the sash
  • internal pivot
  • roller length: 140 mm, diameter: 20.0 mm
  • milling diameter: 20.0 mm
  • rebate width: 10 mm
  • load capacity: 120 kg with 2 hinges (door size: 1000 x 2000 mm, distance between hinges: 1435 mm)
  • material:
    • stainless steel
    • brown
    • black
    • white

Classification code according to DIN EN 1935

4 7 5 0 1 -*1 1 12*2

*1 depending on surface treatment (classification according to DIN EN 1670:2007 requirements):
*2 durability test performed with a 120 kg weight

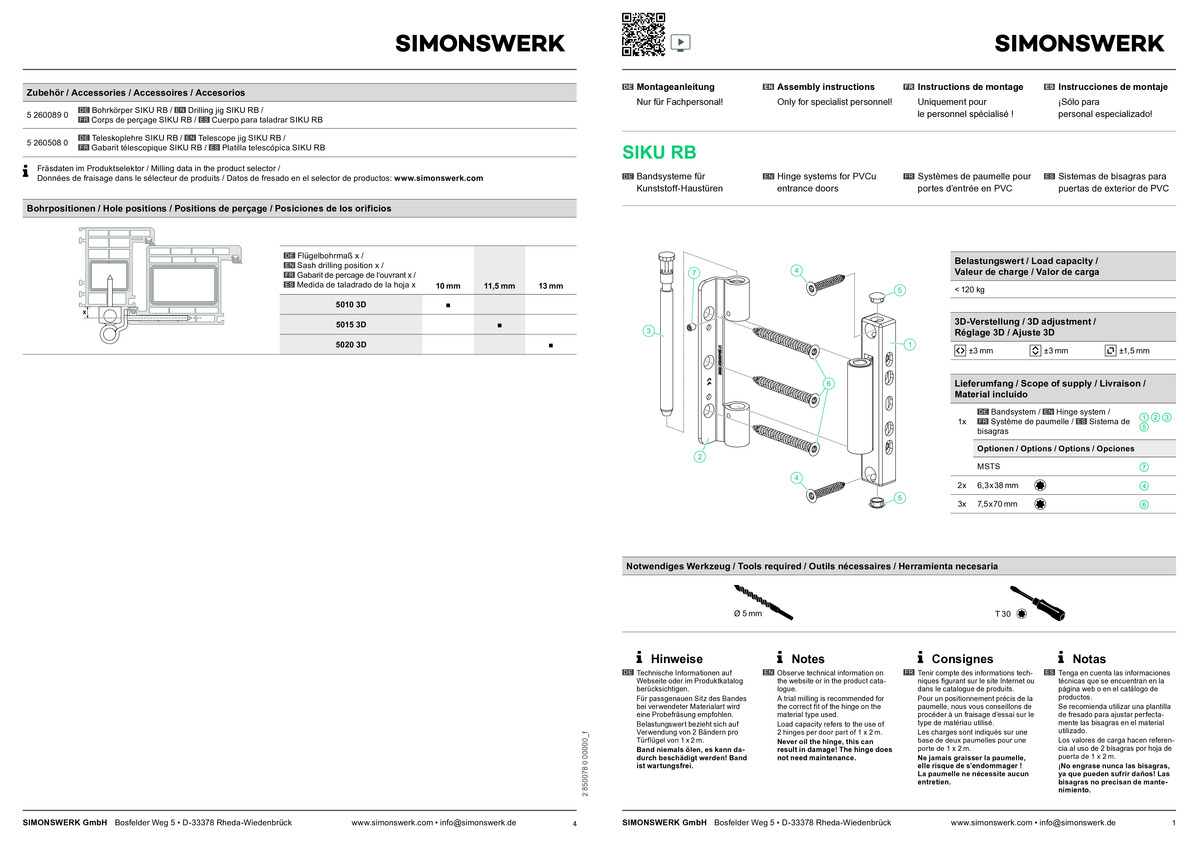

SIKU RB assembly instructions SIKU RB assembly instructions

All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

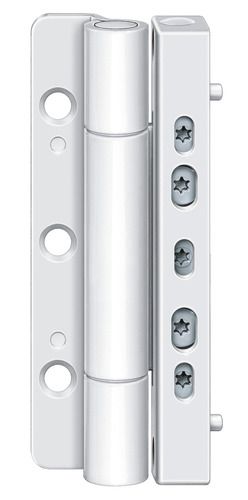

  1. Hinge SIKU RB 5010 3D MSTS, white
    Hinge SIKU RB 5010 3D MSTS, white
    Code: SB00029535
    Art. Nr.: 500002424
    Price:
    From €28.48
    In Stock: 0 pc.
    Visma Quote

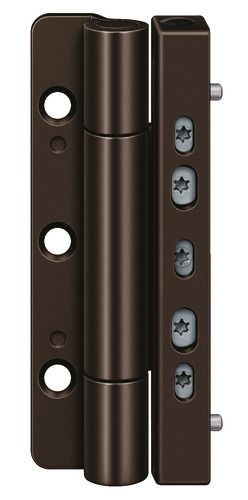

  2. Hinge SIKU RB 5010 3D MSTS, brown H9
    Hinge SIKU RB 5010 3D MSTS, brown H9
    Code: SB00029536
    Art. Nr.: 500002425
    Price:
    From €28.48
    In Stock: 0 pc.
    Visma Quote

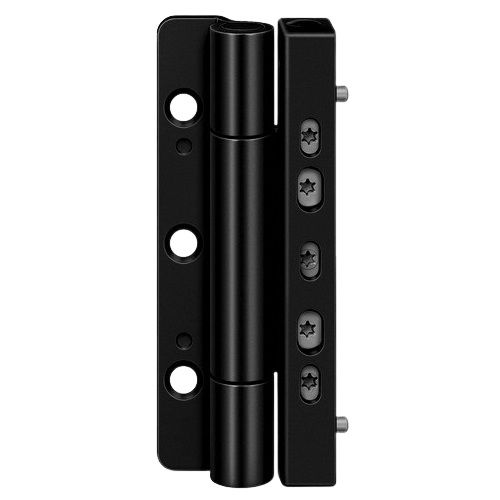

  3. Hinge SIKU RB 5010 3D MSTS, black
    Hinge SIKU RB 5010 3D MSTS, black
    Code: SB00029537
    Art. Nr.: 500002428
    Price:
    From €28.48
    In Stock: 0 pc.
    Visma Quote

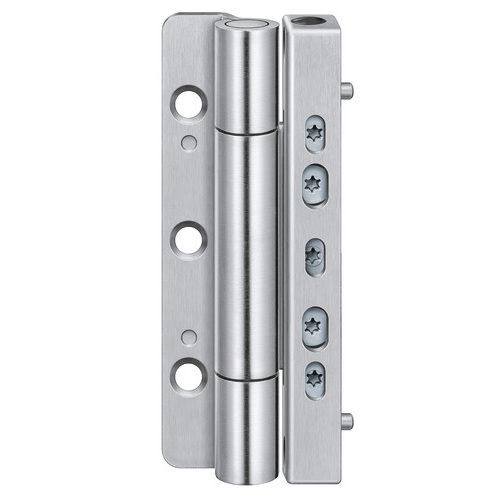

  4. Hinge SIKU RB 5010 3D MSTS, stainless steel
    Hinge SIKU RB 5010 3D MSTS, stainless steel
    Code: SB00029534
    Art. Nr.: 500002422
    Price:
    From €31.34
    In Stock: 0 pc.
    Visma Quote
Manufacturer SIMONSWERK
hinge type exterior door hinge
hinge shape rounded
door direction universal use for DIN right and left hand doors
class as per EN 1935 class 4
fire safety not suitable for fire and smoke safety doors
material thickness 3.5 mm
leaf material PVC
load capacity high
leaf maximum weight 120 kg
suitable for aluminium frames suitable
suitable for steel frames not suitable
suitable for industrial frames not suitable
suitable for timber frames Nav piemērota
anti-corrosion resistance certified according to EN 1935 - depending on finish
adjustment adjustable
adjustment type with eccentrics
groove for leaf seal no
anti-intruder protection yes, integrated safety pin
knuckle length 140 mm
knuckle diameter 20 mm
spindle diameter 10 mm
height 140 mm
maintenance not required (self-lubricating bearings)
fastening elements included in set
material steel / stainless steel
Series SIKU
