Handle OGRO 8115 PREMIUM FS for fireproof doors
Product code
MB00010044
All prices include VAT
From
€130.50
Only %1 left

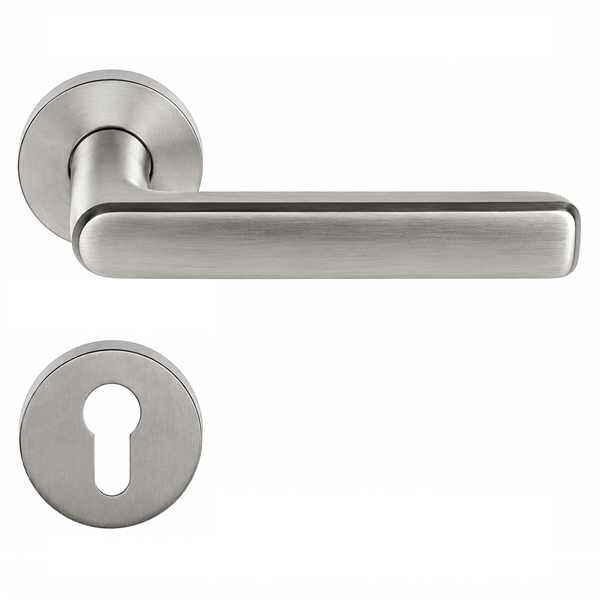

Stainless steel door handle for fire-rated doors OGRO 8115 PREMIUM FS
Manufacturer - OGRO+DENI
- certified for use in fire-rated doors in accordance with EN 1906
- steel subframe with press-fit “Clip” cover plate and steel centering pins Ø 8 mm
- construction complies with load and resistance class 4 according to EN 1906
- construction durability tested on 2'000'000 cycles of use
- concealed M5 screw connection with anti-loosening protection
- automatic locking/unlocking mechanism ensures easy and smooth installation even for heavy doors
- universally applicable for right- and left-handed doors
- with a fixed hinge connection in a self-lubricating slide bearing
- door thickness: 51–65 mm
- handle length: 140 mm
- handle diameter: 23.5 mm
- handle square spindle: 9 mm
- rosette diameter: 55 mm
- can be combined with round knob 3020 FS
- material: stainless steel
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
8115 PREMIUM FS fire safety door handle set with roses PZ, 9mm, stainless steelCode: SB00029435Art. Nr.: 90055030019Price:From €130.50In Stock: 0 set
| Manufacturer | OGRO+DENI |
|---|---|
| Series | OGRO 8115/8116 |
| material | stainless steel |
| leaf material | for wooden and metal doors |
| purpose | for interior doors / for exterior doors |
| construction | lever handles on both sides |
| backplate type | split roses |
| door direction | universal use for DIN right and left hand doors |
| load capacity | high |
| class as per EN 1906 | class 4 |
| fire safety | fire safety certified according to EN1906 |
| Compatibility standard | German (DIN) |
| handle construction | with fixed joint in self-lubricating bearing |
| material: sub-construction | steel |
| Handle return spring integrated in the rose | Yes |
| door thickness | 51-65 mm |
| locking function | PZ - with profile cylinder hole |
| handle length | 140 mm |
| handle diameter | 23.5 mm |
| distance from leaf surface to outer edge of handle | 76 mm |
| handle square spindle size | 9 mm |
| backplate/rose shape | round |
| backplate/rose size | Ø55 mm |
| backplate/rose thickness | 9 mm |
| installation type | screw on |
| fastening type | concealed screws, with unscrewing protection |
| fastening centre distance | 38 mm |
| centring lug diameter | 8 mm |
| fastening elements | included in set |
