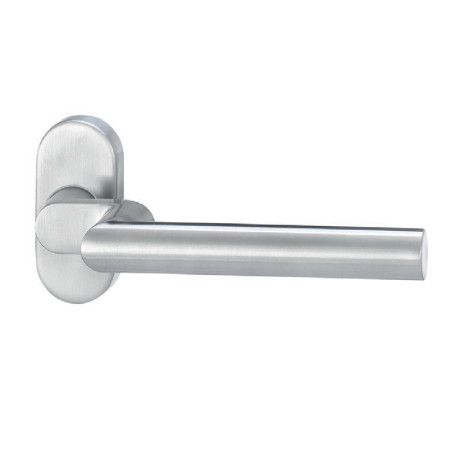

Handle for framed doors Dieckmann 1480 NT
Manufacturer - DIECKMANN (Germany)
-
- spring-loaded lever handle firmly fixed into oval rose
- suitable for both left and right hand doors
- steel sub-construction with click-on rose
- covered screws Ø M5
- rose size: 34 x 75 mm
- rose thickness: 14,5 mm
- handle length (from centre of spindle): 150 mm
- distance from leaf surface to external surface of handle: approx. 87 mm
- spindle square: 8 mm
- handle construction with angled grip reduces the risk of injury which may happen when opening/closing the door by the hand coming into contact with the door frame
- material: stainless steel
- Products
- Price
- In Stock
- Quantity
-
Handle for framed doors 1132 on oval rose, st.steelCode: SB00011133Art. Nr.: 1480/2033/00Price:From €54.81In Stock: 1 pc.
backplate/rose shape | oval |
---|---|
backplate/rose size | 34 x 75 mm |
backplate/rose thickness | 14.5 mm |
class as per EN 1906 | class 4 |
compatibility standard | German (DIN) |
distance from leaf surface to outer edge of handle | 87 mm |
door direction | universal use for DIN right and left hand doors |
fastening centre distance | 50 mm |
fastening elements | included in set |
fastening type | covered |
fire safety | related fireproof model available |
framed door handle construction | offset (for finger protection) |
handle construction | with stable fixed pivot axis |
handle length | 150 mm |
handle square spindle size | 8 mm |
handle spring | integrated holding spring to cushion the push and pull forces |
installation type | screw on |
leaf material | for framed doors |
load capacity | high |
locking function | PZ - with profile cylinder hole |
Manufacturer | DIECKMANN |
material | stainless steel |
material: sub-construction | steel |
purpose | for interior doors |
size | 8 x 140 mm |
