Handle for framed doors Dieckmann NT

Product code
MB00008718
All prices include VAT
From €56.10
From €56.10
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.

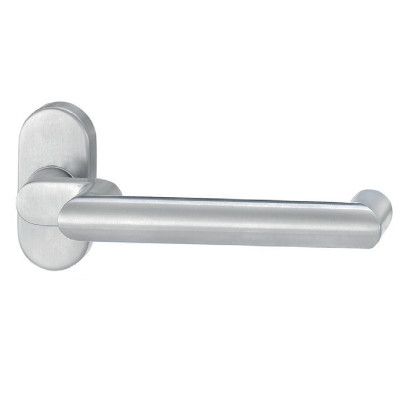

Stainless steel handle for framed doors Dieckmann 1133
Manufacturer - DIECKMANN (Germany)

    • stainless steel spring-loaded lever handle firmly fixed into oval rose
    • suitable for both left and right hand doors
    • steel sub-construction with click-on rose
    • covered screws Ø M5
    • suitable for emergency doors according to DIN EN 179 (only combined with suitable, certified door spindles)
    • rose size: 34 x 75 mm
    • rose thickness: 14,5 mm
    • handle length (from centre of spindle): 158 mm
    • distance from leaf surface to external surface of handle: approx. 85 mm
    • spindle square: 8 mm
    • handle construction with angled grip reduces the risk of injury which may happen when opening/closing the door by the hand coming into contact with the door frame
    • material:
      • stainless steel
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Handle for framed doors 1133 on oval rose, st. steel
    Handle for framed doors 1133 on oval rose, st. steel
    Code: SB00011136
    Art. Nr.: 813 1133/2033 EST
    Price:
    From €56.10
    In Stock: 0 pc.
backplate/rose shape oval
backplate/rose size 34 x 75 mm
backplate/rose thickness 14.5 mm
class as per EN 1906 class 4
compatibility standard German (DIN)
distance from leaf surface to outer edge of handle 85 mm
door direction universal use for DIN right and left hand doors
fastening centre distance 50 mm
fastening elements included in set
fastening type concealed
fastening type covered
fastening type covered
fire safety related fireproof model available
framed door handle construction offset (for finger protection)
handle construction with stable fixed pivot axis
handle length 158 mm
handle square spindle size 8 mm
handle spring integrated holding spring to cushion the push and pull forces
installation type screw on
leaf material for framed doors
load capacity high
locking function PZ - with profile cylinder hole
Manufacturer DIECKMANN
material stainless steel
material: sub-construction steel
purpose for interior doors
suitable for emergency exits complies with 179 - emergency door equipment
