Handle for framed doors FSB 06 1035 NT
Product code
MB00008899
All prices include VAT
From
€172.01
Only %1 left

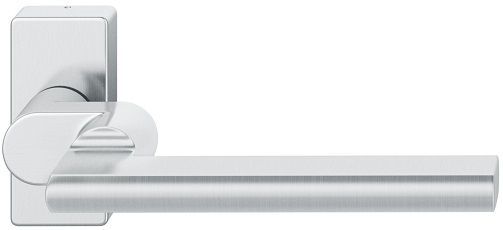

Stainless steel handle for framed doors FSB 06 1035
Manufacturer - FSB (Germany)
Design: Heike Falkenberg
Manufacturer - FSB (Germany)
Design: Heike Falkenberg
-
- spring-loaded lever handle firmly fixed into rose
- suitable for both left and right hand doors
- set with rectangular roses
- covered screws Ø M5
- handle construction with angled grip reduces the risk of injury which may happen when opening/closing the door by the hand coming into contact with the door frame
- rose size: 32,5 x 70 mm
- rose thickness: 14 mm
- total length of handle (from rose inner edge): 165 mm
- distance between leaf surface and front surface of handle: approx. 84,5 mm
- spindle square: 8 mm
- material: stainless steel
- available finishes:
-
-
- brushed satin matt (standard)
- polished (on request)
-
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Handle for framed doors 06 1035, without spindle on square rose, 8 mm, stainless steelCode: SB00000620Art. Nr.: 0 06 1035 17143 6204Price:From €172.01In Stock: 0 pc.
| Manufacturer | FSB |
|---|---|
| Series | FSB 1035 |
| material | stainless steel |
| leaf material | for framed doors |
| purpose | for interior doors / for exterior doors |
| set | split roses |
| construction | one-sided handle female part on rose |
| class as per EN 1906 | class 4 |
| load capacity | high |
| suitable for emergency exits | related model available, complies with EN 179 requirements |
| fire safety | related fireproof model available |
| door direction | universal use for DIN right and left hand doors |
| compatibility standard | German (DIN) |
| position of door handle | offset (for finger protection) |
| handle construction | with stable fixed pivot axis |
| material: sub-construction | solid steel |
| handle spring | integrated holding spring to cushion the push and pull forces |
| handle square spindle size | 8 mm |
| backplate/rose shape | square |
| backplate/rose thickness | 14 mm |
| size | 8 x 140 mm |
| backplate/rose size | 32,5 x 70 mm |
| installation type | screw on |
| fastening type | concealed screw fitting |
