Handle for framed doors FSB 06 1134 NT

Product code
MB00008901
All prices include VAT
From €228.19
From €228.19
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.

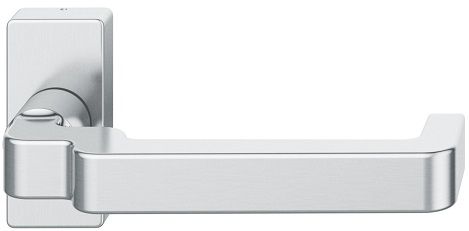

Stainless steel handle for framed doors FSB 06 1134
Manufacturer - FSB (Germany)
Design: David Chipperfield

    • spring-loaded lever handle firmly fixed into rose
    • suitable for both left and right hand doors
    • set with rectangular roses
    • covered screws Ø M5
    • complies with EN 179 requirements for emergency door equipment
    • handle construction with angled grip reduces the risk of injury which may happen when opening/closing the door by the hand coming into contact with the door frame
    • rose size: 32,5 x 70 mm
    • rose thickness: 14 mm
    • total length of handle (from rose inner edge): 154 mm
    • distance between leaf surface and front surface of handle: approx. 73 mm
    • spindle square: 8 mm
    • material: stainless steel matt satin
    •

PVD finishes in various tones available on request
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Framed door handle 06 1134, without spindle on square rose, 8 mm, st. steel,
    Framed door handle 06 1134, without spindle on square rose, 8 mm, st. steel,
    Code: SB00000631
    Art. Nr.: 2 06 1134 07143 NT
    Price:
    From €228.19
    In Stock: 0 pc.
backplate/rose shape square
backplate/rose size 32,5 x 70 mm
backplate/rose thickness 14 mm
class as per EN 1906 class 4
compatibility standard German (DIN)
construction one-sided handle female part
door direction universal use for DIN right and left hand doors
fastening type concealed screws
fastening type concealed screw fitting
fastening type concealed screws
fire safety related fireproof model available
framed door handle construction offset (for finger protection)
handle construction with stable fixed pivot axis
handle square spindle size 8 mm
handle spring integrated holding spring to cushion the push and pull forces
installation type screw on
leaf material for framed doors
load capacity high
Manufacturer FSB
material stainless steel
material: sub-construction solid steel
purpose for interior doors / for exterior doors
set with split roses
suitable for emergency exits complies with 179 - emergency door equipment
