Fireproof emergency handle on square rose for framed doors FSB 09 1134 FS NT

Product code
MB00008905
All prices include VAT
From €201.31
From €201.31
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Fireproof stainless steel handle on square rose for framed doors FSB 09 1134
Manufacturer - FSB (Germany)
Design: David Chipperfield

    • lever handle firmly fixed into rose, suitable for narrow framed doors
    • solid steel sub-construction
    • integrated spring for lock load release with active angle of 45°
    • construction durability tested on 1'500'000 cycles of use
    • complies with DIN 18 273 and EN 1634-1 standards for fire safety doors
    • complies with EN 179 standard for emergency door equipment
    • suitable for both left and right hand doors
    • set with square rose for framed doors
    • concealed screws Ø M5
    • rose size: 32.5 x 70 mm
    • rose thickness: 14 mm
    • total length of handle (from inner edge of rose): 133 mm
    • distance from leaf surface to handle exterior surface: approx. 71,5 mm
    • spindle square: 9 mm
    • material: aluminium anodised
    • available finishes:
      • matt satin (standard finish)
      • polished

  •
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

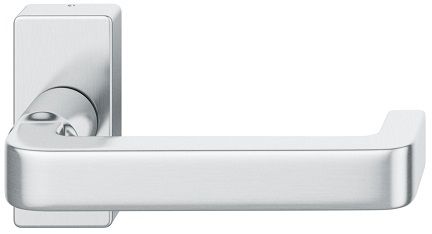

  1. FSB 09 1134 handle for framed fireproof emergency door on square rose, stainless steel
    FSB 09 1134 handle for framed fireproof emergency door on square rose, stainless steel
    Code: SB00000732
    Art. Nr.: 0 09 1134 27263 6204
    Price:
    From €201.31
    In Stock: 0 pc.
backplate/rose shape square
backplate/rose size 32,5 x 70 mm
backplate/rose thickness 14 mm
class as per EN 1906 class 4
compatibility standard German (DIN)
construction one-sided handle female part
door direction universal use for DIN right and left hand doors
fastening type concealed screw fitting
fire safety fire safety certified according to EN1906
framed door handle construction not offset
handle construction with stable fixed pivot axis
handle length 133 mm
handle square spindle size 9 mm
handle spring integrated holding spring to cushion the push and pull forces
installation type screw on
leaf material for framed doors
load capacity high
Manufacturer FSB
material stainless steel
material: sub-construction solid steel
purpose for interior doors / for exterior doors
Series FSB 1134
set split roses
size 8 x 140 mm
suitable for emergency exits complies with 179 - emergency door equipment
