Handle TARGA/L-103 for fireproof emergency doors PZ92
Product code
MB00009053-PZ92
All prices include VAT
From
€87.07
€124.39
Only %1 left
Stainless steel handle for fireproof emergency doors TARGA/L-103
Manufacturer - DIECKMANN (Germany)
- complies with DIN 18 273 standard for fire safety doors and with EN 179 standard for emergency door equipment combined with certified locks
- steel sub-construction with click-on rose and supporting lugs Ø 8 mm
- corresponds to grade 4 in use and durability according to EN 1906
- concealed screws M5 with unscrewing protection
- suitable for both left and right hand doors
- with fixed joint in self-lubricating bearing
- door thickness: 40-65 mm
- handle length: 142 mm
- handle diameter: 22 mm
- spindle square: 9 mm
- backplate size: 250 x 54 x 8 mm
- PZ centre distance: 92 mm
- material: stainless steel matt satin
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

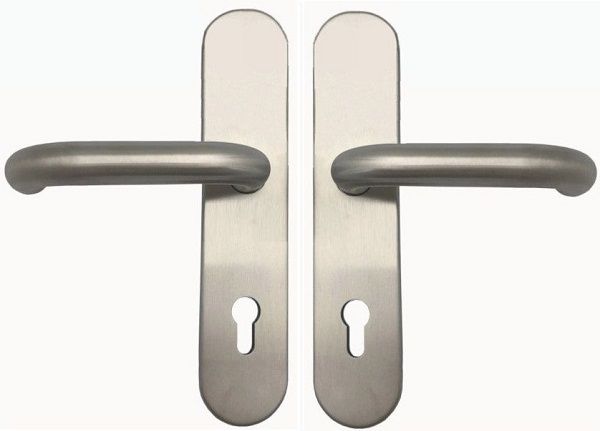

Fire safety door handle set TARGA/L-103 PZ 9/92, stainless steelCode: SB00011339Art. Nr.: 5303/9203/00Price:From Special Price €87.07 was €124.39This price applies only to items in stock. For larger quantities price is calculated upon request.In Stock: 1 pc.
Additional products
- Products
- Price
- In Stock
- Quantity
-
ANTI-PANIK split handle spindle for fire safety doors 9mm x 60/80Code: SB00011058Art. Nr.: 0566/6080/00Price:From €5.67In Stock: 21 pc.
| Manufacturer | DIECKMANN |
|---|---|
| material | stainless steel |
| purpose | for interior doors / for exterior doors |
| leaf material | for wooden and metal doors |
| construction | lever handles on both sides |
| backplate type | long backplates |
| load capacity | high |
| class as per EN 1906 | class 4 |
| fire safety | fire safety certified according to EN1906 |
| suitable for emergency exits | complies with 179 - emergency door equipment |
| handle construction | with fixed joint in self-lubricating bearing |
| handle spring | integrated holding spring to cushion the push and pull forces |
| material: sub-construction | steel |
| door direction | universal use for DIN right and left hand doors |
| compatibility standard | German (DIN) |
| door thickness | 40-65 mm (WC 40-59 mm) |
| locking function | PZ - with profile cylinder hole |
| centre distance PZ | 92 mm |
| handle length | 142 mm |
| handle diameter | 22 mm |
| handle square spindle size | 9 mm |
| backplate/rose shape | round |
| backplate/rose size | 54 x 250 mm |
| backplate/rose thickness | 8 mm |
| distance from leaf surface to outer edge of handle | 68 mm |
| installation type | screw on |
| fastening type | concealed screws, with unscrewing protection |
| centring lug diameter | 8 mm |
| fastening elements | included in set |
