Door handle for fireproof doors MONACO II-R WE BK3 FS

Product code
MB00008708
SÜDMETALL View catalogue of manufacturer
main product photo
All prices include VAT
From €53.46
From €53.46
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Questions and answers
Durvju furnitūras kopšanas norādījumi.
Nerūsējošais tērauds. Materiāla īpašības un kopšanas ieteikumi.

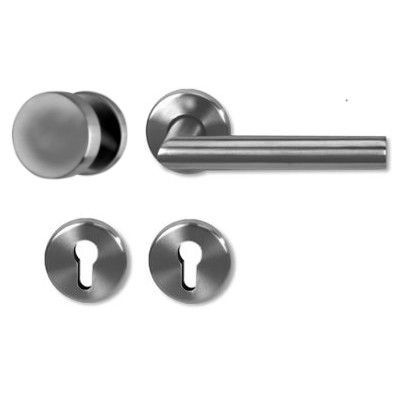

Stainless steel handle for fireproof doors with knob MONACO II-R WE BK3 FS
Manufacturer - Südmetall (Germany)

    • suitable for fireproof doors
    • high-quality durable material
    • keyhole options: PZ, BB, WC
    • spindle square: 8 / 9 / 8 mm (Ø 9 mm in spindle centre - lock installation site)
    • handle length: 130 mm
    • rose diameter: 52 mm
    • distance between lugs: 38 mm
    • click-on roses Ø 52 mm
    • standard doors thickness: 38 - 46 mm
    • integrated spring to cushion the push and pull forces
    • nylon sub-construction with 7 mm fixing lugs
    • metric thread connecting bolts
    • suitable for use in heavy-duty doors with high usage without fire safety requirements (by changing the spindle)
    • corresponds to grade 3 in load capacity according to EN 1906
    • can be certified for fire safety as part of door construction
    • material: stainless steel

СERTIFICATION ACCORDING TO EN 1906 NOT AVAILABLE.
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. MONACO II-R WE door knob set for fire safety doors, DIN right, BK3, st.steel
    MONACO II-R WE door knob set for fire safety doors, DIN right, BK3, st.steel
    Code: SB00004699
    Art. Nr.: 28.05.6430FS
    Price:
    From €53.46
    In Stock: 0 set
  2. MONACO II-R WE door knob set for fire safety doors, DIN left, BK3, st.steel
    MONACO II-R WE door knob set for fire safety doors, DIN left, BK3, st.steel
    Code: SB00004701
    Art. Nr.: 28.05.6440FS
    Price:
    From €53.46
    In Stock: 0 set
  3. MONACO II-R WE rokturpogas grt.ugunsdr.durvīm, BK3, DB 47-70 mm, nerūs.tērauds, KREISĀ
    MONACO II-R WE rokturpogas grt.ugunsdr.durvīm, BK3, DB 47-70 mm, nerūs.tērauds, KREISĀ
    Code: SB00022334
    Art. Nr.: 28.05.6440FS/70
    Price:
    From €58.01
    In Stock: 0 set
  4. MONACO II-R WE rokturpogas grt.ugunsdr.durvīm, BK3, DB 47-70 mm, nerūs.tērauds, LABĀ
    MONACO II-R WE rokturpogas grt.ugunsdr.durvīm, BK3, DB 47-70 mm, nerūs.tērauds, LABĀ
    Code: SB00022333
    Art. Nr.: 28.05.6430FS/70
    Price:
    From €58.01
    In Stock: 0 set
backplate/rose shape round
backplate/rose size Ø52 mm
centring lug diameter 7 mm
class as per EN 1906 class 3
compatibility standard German (DIN)
construction lever handle / inactive door knob
door direction when ordering please indicate door swing direction
door thickness 38-46 mm
fastening centre distance 38 mm
fastening type concealed screw fitting
fire safety to be certified in door tests as component of equipment
handle length 130 mm
handle square spindle size 8-9-8 mm
handle spring integrated holding spring to cushion the push and pull forces
installation type screw on
leaf material for wooden and metal doors
load capacity high
locking function PZ / BB / WC
Manufacturer SÜDMETALL
material stainless steel
material: sub-construction nylon
purpose for interior doors
set with split roses
