Door knob set RIVA-108 K7 ALU

Product code
MB00009059
All prices include VAT
From €69.09
From €69.09
In Stock
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Black aluminium handle with door knob RIVA-108
Manufacturer - DIECKMANN (Germany)

    • steel/plastic sub-construction with click-on rose and supporting lugs Ø 8 mm
    • corresponds to grade 4 in use and durability according to EN 1906
    • concealed screws M5 with unscrewing protection
    • automatic locking and release mechanism guarantees easy installation even in heavy doors
    • suitable for both left and right hand doors
    • with fixed joint in self-lubricating bearing
    • door thickness: 40-65 mm (WC 40-59 mm)
    • handle length - 136 mm
    • handle diameter: 22 mm
    • spindle square: 8 mm
    • rose diameter: 55 mm
    • material:
      • aluminium powder-coated in black (F14)
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

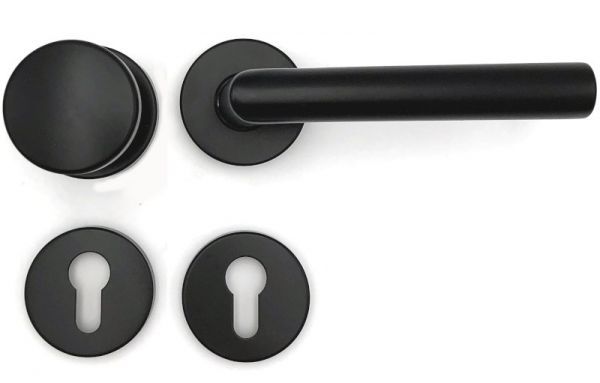

  1. Handle/roses set with doorknob RIVA-108 WE Class 4, aluminium F14 black
    Handle/roses set with doorknob RIVA-108 WE Class 4, aluminium F14 black
    Code: SB00011378
    Art. Nr.: 5908/0786/14
    Price:
    From €69.09
    In Stock: 0 kit
backplate/rose shape round
backplate/rose size Ø55 mm
backplate/rose thickness 8 mm
centring lug diameter 8 mm
class as per EN 1906 class 4
compatibility standard German (DIN)
construction lever handle / inactive door knob
distance from leaf surface to outer edge of handle 67 mm
door direction universal use for DIN right and left hand doors
door knob shape round
door knob size Ø50 mm
door thickness 40-65 mm (WC 40-59 mm)
fastening centre distance 38 mm
fastening elements included in set
fastening type concealed screws, with unscrewing protection
fire safety related fireproof model available
handle construction with fixed joint in self-lubricating bearing
handle diameter 22 mm
handle length 130 mm
handle square spindle size 8 mm
handle spring integrated holding spring to cushion the push and pull forces
installation type screw on
leaf material for wooden and metal doors
load capacity high
locking function PZ - with profile cylinder hole
Manufacturer DIECKMANN
material: sub-construction steel
material aluminium anodised
purpose for interior doors / for exterior doors
set with split roses
