Push bar for panic doors EPN 900 IV

Product code
MB00000695-M1150
ECO Schulte

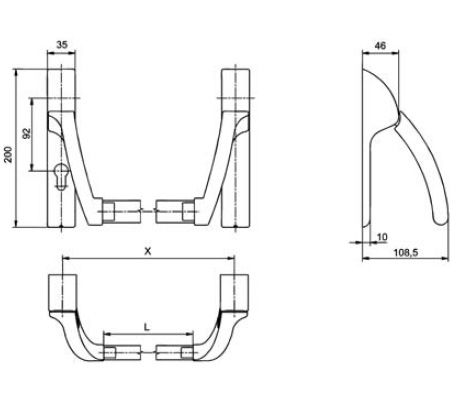

main product photo
All prices include VAT
From €128.13 €183.04
Only %1 left
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
with industry profesionals
Book a consultation
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Service
Manufacturers' catalogues, product documentation etc.

Push bar for panic doors EPN 900 IV

Manufacturer - ECO Schulte (Germany)

  • push bar for emergency doors
  • suitable for use in panic (emergency exit) doors according to EN 1125 in combination with B, D and E function locks
  • suitable for use on smoke control and fire doors
  • the door can be opened by pushing the bar
  • lever arms are cranked particularly wide and facilitate the use of electronic locking cylinders
  • large, sturdy grip tube (vandalism)
  • lever arms and bar screwed together with high-strength connection
  • universal use for DIN right and left hand doors
  • spindle square: 9 mm
  • without key hole
  • push bar backplate size: 200 x 35 mm, thickness - 10 mm
  • standard bar length: 1150 mm (for leaf width of 1300 mm)
  • oval bar cross section 30/15 mm
  • operational angle 30°
  • material: stainless steel
  • gear unit: steel zinc-plated
  • color: black
  •
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Panicbar EPN 900 IV BAC, 1150 mm, black
    Panicbar EPN 900 IV BAC, 1150 mm, black
    Code: SB00015348
    Art. Nr.: 4907/100004
    Price:
    From Special Price €128.13 was €183.04
    This price applies only to items in stock. For larger quantities price is calculated upon request.
    In Stock: 3 pc.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. 0540 Door knob spindle 9x95 mm, galvanised
    0540 Door knob spindle 9x95 mm, galvanised
    Code: SB00011049
    Art. Nr.: 0540/0909/50
    Price:
    From €3.71
    In Stock: 0 pc.
    Visma Quote
  2. ANTI-PANIK split handle spindle for panic doors 9x60/60 mm
    ANTI-PANIK split handle spindle for panic doors 9x60/60 mm
    Code: SB00011057
    Art. Nr.: 0566/6060/00
    Price:
    From €4.84
    In Stock: 6 pc.
  3. ANTI-PANIK split handle spindle for fire safety doors 9mm x 60/80
    ANTI-PANIK split handle spindle for fire safety doors 9mm x 60/80
    Code: SB00011058
    Art. Nr.: 0566/6080/00
    Price:
    From €5.67
    In Stock: 21 pc.
  4. Targa/K inactive door knob on short PZ backplate (half-set), stainless steel
    Targa/K inactive door knob on short PZ backplate (half-set), stainless steel
    Code: SB00011327
    Art. Nr.: 5203/0772 EST/2
    Price:
    From €34.59
    In Stock: 0 pc.
    Visma Quote
  5. Fire safety door handle (outer) TARGA/K-103 FS with short backplate PZ 9/72, stainless steel
    Fire safety door handle (outer) TARGA/K-103 FS with short backplate PZ 9/72, stainless steel
    Code: SB00011329
    Art. Nr.: 5203/7203/00 1/2
    Price:
    From €34.59
    In Stock: 1 pc.
  6. 4910 Emergency door handle EN179, stainless steel
    4910 Emergency door handle EN179, stainless steel
    Code: SB00015349
    Art. Nr.: 4910/000001
    Price:
    From €57.95
    In Stock: 0 pc.
    Visma Quote
  7. 4917 single-sided panic spindle 9x9 mm, galvanized
    4917 single-sided panic spindle 9x9 mm, galvanized
    Code: SB00015354
    Art. Nr.: 4917/000003
    Price:
    From €6.53
    In Stock: 5 pc.
Manufacturer ECO Schulte
backplate/rose thickness 10 mm
backplate/rose size 200 x 35 mm
leaf width 1000 mm / 1300 mm
door direction universal use for DIN right and left hand doors
suitable for emergency exits complies with 1125 - panic door equipment
evacuation function B/D/E
distance from leaf surface to outer edge of handle 136 mm
handle square spindle size 9 mm
locking function PZ / BAC
total length 900 mm / 1150 mm
fire safety suitable for fire safety doors
purpose for interior doors / for exterior doors
leaf material for wooden and metal doors
material stainless steel
backplate type short backplates
construction push bar with backplates
Series EPN
