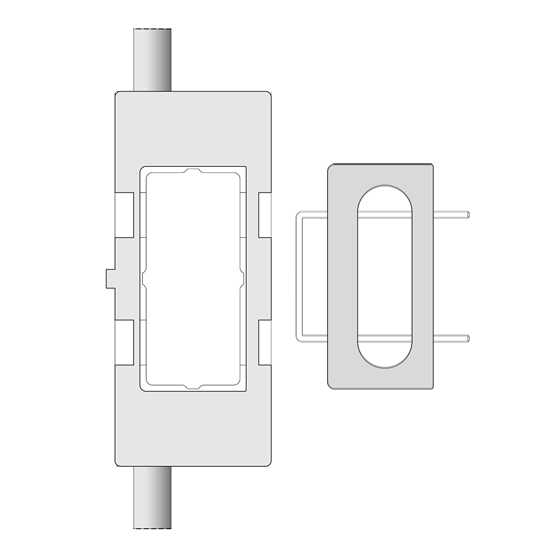

Routing template for hinges ANSELMI AN140/160/180 3D

Milling template for hinges ANSELMI AN140/160/180 3D

• The template set includes the template frame and fixing device
• Template inserts must be purchased separately
• Universal application for DIN right- and left-handed doors
• Template rental available
• For milling, use a Ø14 mm router bit with a 25 mm guide bush or a Ø16 mm router bit with a 27 mm guide bush (to be purchased separately)

Installation steps

1. Attach the template fixing device with guides to the template frame.
2. Insert the template insert and make approximate adjustments according to the specified rail and angle parameters.
3. Make precise adjustments using the spindles.

Set contents

• Template frame (included in the template set)
• Template inserts (supplied separately)

Tools and accessories required for milling:

• Ø14 mm or Ø16 mm router bit
• 25 mm or 27 mm router guide bush
