Milling frame for ANSELMI AN142 hinges

Product code
SABLO-AN142
main product photo
From €427.84
Reset selection
Universal hinge routing template   €391.54
Code: SB00018882
Art. Nr.: 500004588
In Stock. Available: 3 gab.
Routing template 1 - ANSELMI AN142, cutter 24mm, collar ring 30mm   €18.15
Code: SB00027695
Art. Nr.: ANSELMI AN142 šablons1
In Stock. Available: 4 gab.
Routing template 2 - ANSELMI AN142, cutter 24mm, collar ring 30mm   €18.15
Code: SB00027696
Art. Nr.: ANSELMI AN142 šablons2
In Stock. Available: 4 gab.

Price as configured €427.84

kit
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
with industry profesionals
Book a consultation
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Service
Manufacturers' catalogues, product documentation etc.

Milling frame for ANSELMI AN142 hinges

  • Set includes a milling frame and a fastener
  • Routing templates are sold separately
  • universal use for both left and right hand doors
  • routing templates are available for rent
  • to be used with a Ø24 mm cutter and a 30 mm collar ring (sold separately)


Installation

  1. Using clamp rods, attach the fastener to the milling frame
  2. Adjust the fastener to the rebate construction and fix in place with fastening screws
  3. Using the clamping wheel, secure the milling frame onto the workpiece
  4. Insert a routing template and roughly adjust using the values given for the rail and the angle
  5. Fine-adjust the setup using spindles


Set

  • milling frame (included)
  • fastener (included)
  • routing templates (sold separately)



Tools and accessories for milling

  • cutter Ø24 mm
  • collar ring 30 mm





All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Universal hinge routing template
    Universal hinge routing template
    Code: SB00018882
    Art. Nr.: 500004588
    Price:
    From €391.54
    In Stock: 3 pc.
  2. Routing template 1 - ANSELMI AN142, cutter 24mm, collar ring 30mm
    Routing template 1 - ANSELMI AN142, cutter 24mm, collar ring 30mm
    Code: SB00027695
    Art. Nr.: ANSELMI AN142 šablons1
    Price:
    From €18.15
    In Stock: 4 pc.

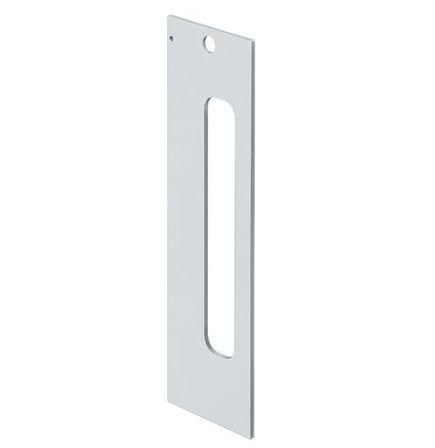

  3. Routing template 2 - ANSELMI AN142, cutter 24mm, collar ring 30mm
    Routing template 2 - ANSELMI AN142, cutter 24mm, collar ring 30mm
    Code: SB00027696
    Art. Nr.: ANSELMI AN142 šablons2
    Price:
    From €18.15
    In Stock: 4 pc.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. Universal routing template insert for ANSELMI hinges AN 130/140/150/160/170/180, milling cutter 24mm, ring 30mm
    Universal routing template insert for ANSELMI hinges AN 130/140/150/160/170/180, milling cutter 24mm, ring 30mm
    Code: SB00025849
    Art. Nr.: 5 2511173 6 00000
    Price:
    From €18.54
    In Stock: 6 pc.
Series ANSELMI
