Routing template for hinges ANSELMI AN172/192

Milling frame for ANSELMI AN172/192 hinges

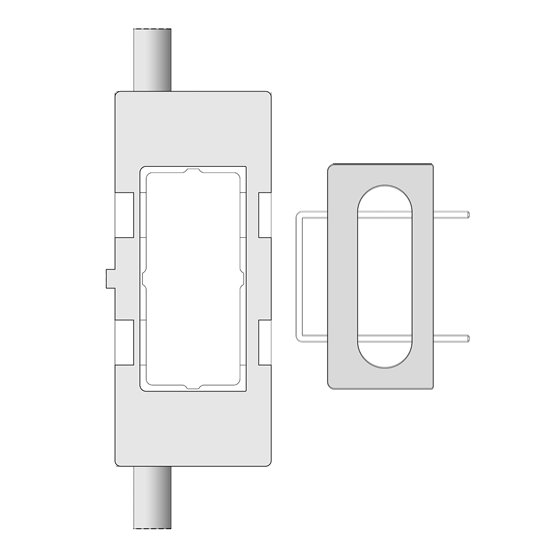

• The template set includes the template frame and fixing device
• Template inserts must be purchased separately
• Universal application for DIN right- and left-handed doors
• Template rental available
• For milling, use a Ø24 mm router bit with a 30 mm guide bush (to be purchased separately)

Installation

1. Attach the template fixing device with guides to the template frame.
2. Insert the template insert and make approximate adjustments according to the specified rail and angle parameters.
3. Make precise adjustments using the spindles.

Set

• Template frame (included in the template set)
• Template inserts (supplied separately)

Tools and accessories for milling

• Ø24 mm mm router bit
• 30 mm router guide bush
