Milling template OTLAV INVISACTA IN230 hinges

OTLAV INVISACTA IN230 template for hinges

• The template set includes a template frame and a fastener.
• Template inserts must be purchased separately.
• Universal application for DIN right and left doors.
• Template rental available.
• A Ø16 mm milling cutter and a 30 mm copy ring for a router (to be purchased separately) can be used for milling.

Installation steps

1. Attach the template fastener with guides to the template frame.
2. Adjust the template clamp to the rebate design and secure with the clamping screws.
3. Secure the template to the workpiece with the fixing bar.
4. Insert the insert and make approximate settings according to the given rail and angle parameters.
5. Use the spindle to make precise adjustments.

Components

• template frame (included in the template set)
• template clamp (included in the template set)

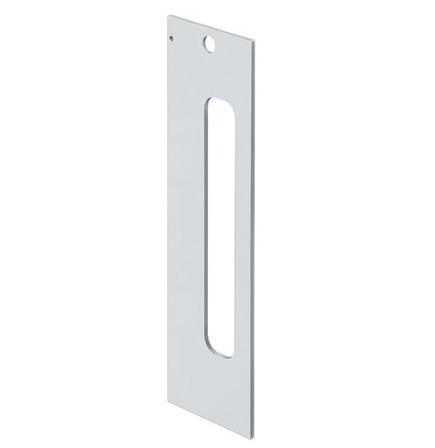

• template inserts (to be supplied separately)

Tools and accessories for milling:

• milling cutter Ø16 mm
• end mill copying ring 30 mm
