Milling template SIMONSWERK TECTUS TE 240 hinges

SIMONSWERK TECTUS TE 240 template for hinges

• The template set includes a template frame and a clamp.
• Template inserts must be purchased separately.
• Universal application for DIN right and left doors.
• Template rental available.
• A Ø16 mm milling cutter and a 30 mm copy ring for a router (to be purchased separately) are required for milling.

Installation steps

1. Attach the template clamp with guides to the template frame.
2. Adjust the template clamp to the rebate construction and secure with fixing screws.
3. Secure the template to the workpiece with the fixing bar.
4. Insert the insert and make approximate settings according to the given rail and angle parameters.
5. Use the spindle to make precise adjustments.

Components

• template frame (included in the template set)
• template clamp (included in the template set)

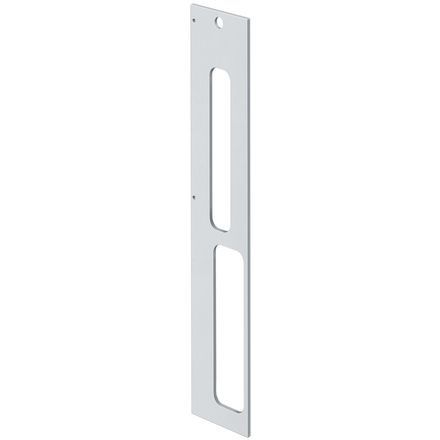

• template inserts (to be supplied separately)

Tools and accessories for milling:

• milling cutter Ø16 mm
• end mill copying ring 30 mm
