Routing template or hinges with deeper recess SIMONSWERK TECTUS TE 311 FVZ

SIMONSWERK TECTUS TE 311 FVZ template for hinges with increased box installation depth

• The template set includes a template frame and a fastener.

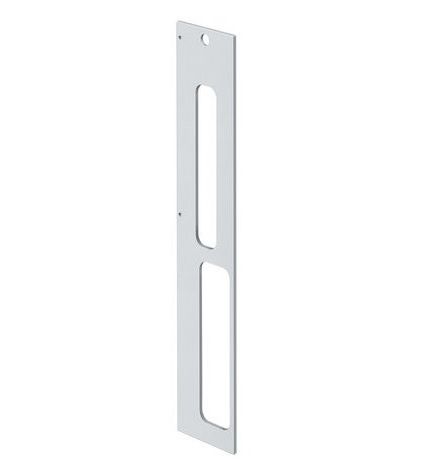

• Template inserts must be purchased separately.
• Universal application for DIN right and left doors.
• Template rental available.
• A Ø24 mm milling cutter and a 30 mm copy ring for a router (to be purchased separately) are used for milling.

Installation steps

1. Attach the template fasteners with guides to the template frame.
2. Adjust the template clamp to the rebate design and secure with the fixing screws.
3. Secure the template to the workpiece with the fixing bar.
4. Insert the insert and make approximate settings according to the given rail and angle parameters.
5. Use the spindle to make precise adjustments.

Components

• template frame (included in the template set)
• template clamp (included in the template set)
• template inserts (to be supplied separately)

Tools and accessories for milling:

• milling cutter Ø24 mm
• end mill copying ring 30 mm
