Routing template for hinges SIMONSWERK TECTUS TE 640 A8

Product code
SABLO-TE640-A8
main product photo
From €515.86
Reset selection

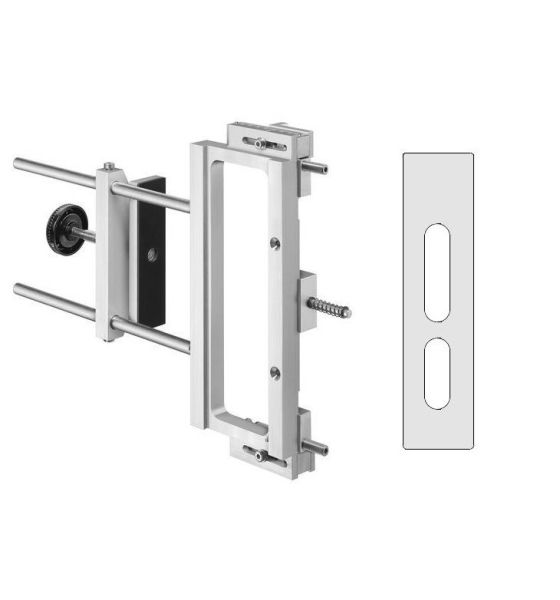

Universal hinge routing template   €391.54
Code: SB00018882
Art. Nr.: 500004588
In Stock. Available: 3 gab.

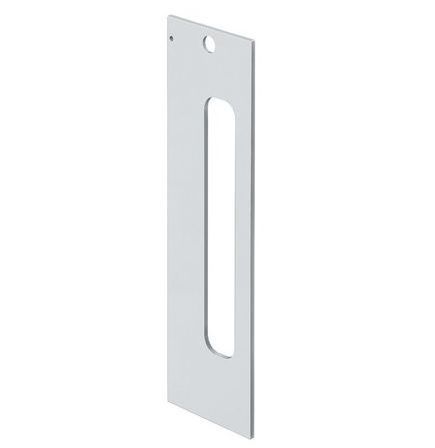

Router template insert 1 - TECTUS TE 640   €45.80
Code: SB00018870
Art. Nr.: 250659 5 00001
In Stock. Available: 3 gab.
Router template insert 2 - TECTUS TE 640   €26.17
Code: SB00018875
Art. Nr.: 250689 5 00001
In Stock. Available: 3 gab.
Router template insert 3 - TECTUS TE 640   €26.17
Code: SB00018876
Art. Nr.: 250690 5 00001
In Stock. Available: 2 gab.
Router template insert 3/1 - TECTUS TE 640   €26.17
Code: SB00018874
Art. Nr.: 250688 5 00001
In Stock. Available: 2 gab.

Price as configured €515.86

kit
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
with industry profesionals
Book a consultation
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Service
Manufacturers' catalogues, product documentation etc.

SIMONSWERK TECTUS TE 640 A8 template for hinges

  • The template set includes a template frame and a clamp.
  • Template inserts must be purchased separately.
  • Universal application for DIN right and left doors.
  • Template rental available.
  • A Ø24 mm milling cutter and a 30 mm copy ring for a router (to be purchased separately) are required for milling.


Installation steps

  1. Attach the template fasteners with guides to the template frame.
  2. Adjust the template clamp to the rebate design and secure with the fixing screws.
  3. Secure the template to the workpiece with the fixing bar.
  4. Insert the insert and make approximate settings according to the given rail and angle parameters.
  5. Use the spindle to make precise adjustments.


Components

  • template frame (included in the template set)
  • template clamp (included in the template set)
  • template inserts (to be supplied separately)



Tools and accessories for milling:

  • milling cutter Ø24 mm
  • end mill copying ring 30 mm
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Universal hinge routing template
    Universal hinge routing template
    Code: SB00018882
    Art. Nr.: 500004588
    Price:
    From €391.54
    In Stock: 3 pc.
  2. Router template insert 1 - TECTUS TE 640
    Router template insert 1 - TECTUS TE 640
    Code: SB00018870
    Art. Nr.: 250659 5 00001
    Price:
    From €45.80
    In Stock: 3 pc.
  3. Router template insert 2 - TECTUS TE 640
    Router template insert 2 - TECTUS TE 640
    Code: SB00018875
    Art. Nr.: 250689 5 00001
    Price:
    From €26.17
    In Stock: 3 pc.
  4. Router template insert 3 - TECTUS TE 640
    Router template insert 3 - TECTUS TE 640
    Code: SB00018876
    Art. Nr.: 250690 5 00001
    Price:
    From €26.17
    In Stock: 2 pc.
  5. Router template insert 3/1 - TECTUS TE 640
    Router template insert 3/1 - TECTUS TE 640
    Code: SB00018874
    Art. Nr.: 250688 5 00001
    Price:
    From €26.17
    In Stock: 2 pc.
Series TECTUS
