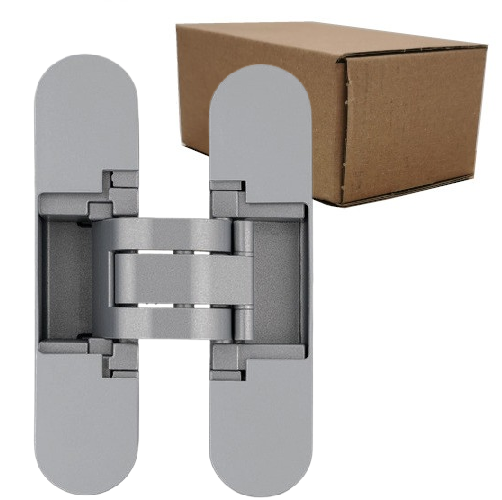

Concealed hinges for residential doors ANSELMI AN 172 3D - PACK of 30 pc.

Product code
MB00009899-IEP
main product photo
All prices include VAT
From €455.38 €700.59
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
with industry profesionals
Book a consultation
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Service
Manufacturers' catalogues, product documentation etc.

Concealed hinges for residential doors  ANSELMI AN172 3D in bulk package

PACK of 30 pc.

Manufacturer - SIMONSWERK GROUP / ANSELMI (Italy)

  • in door leaf and frame completely integrated hinges for interior doors
  • for timber, aluminium and casing frames
  • suitable for unrebated wooden residential doors
  • 3D adjustment: side (+/- 1,5 mm), compression (+/- 1,0 mm) and height (+/- 2,5 mm)
  • may be adjusted without removing the door from its frame
  • suitable for both left and right hand doors
  • maintenance-free bearings
  • load capacity: 60 kg (refers  to the use of 2 hinges per door leaf 900 x 2100 mm)
  • opening angle: 180º
  • overall length: 125 mm
  • wight (door part / frame part): 30 / 30 mm
  • cutter diameter: 24 mm
  • IFT and UL certified
  • material: zamak / acetal
  • standard finishes:
    • satin chrome (AN 014)
    • black (AN 018)
    • traffic white RAL 9016 (AN 049)
  • finishes available on request:
    • antique bronze (AN 035)
    • polished brass (AN 037)
    • satin nickel (AN 044)
    • aluminium chrome (AN 036)
    • polished chrome (AN 039)

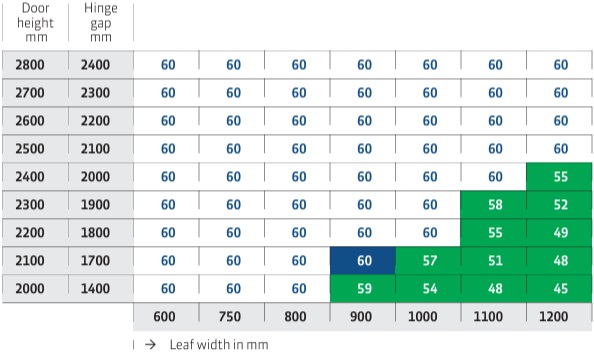

Permissible load values with diffrerent leaf widht and height ratios

All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Concealed hinge ANSELMI AN 172 3D, white
    Concealed hinge ANSELMI AN 172 3D, white
    Code: SB00024911-IEP
    Art. Nr.: SLSA30A33NCV49
    Price:
    From Special Price €455.38 was €700.59
    In Stock: 0 pack.
    Visma Quote
  2. Concealed hinge ANSELMI AN 172 3D, matt chrome
    Concealed hinge ANSELMI AN 172 3D, matt chrome
    Code: SB00024909-IEP
    Art. Nr.: SLSA30A33NCV14
    Price:
    From Special Price €455.38 was €700.59
    In Stock: 1 pack.
  3. Concealed hinge ANSELMI AN 172 3D, black
    Concealed hinge ANSELMI AN 172 3D, black
    Code: SB00024912-IEP
    Art. Nr.: SLSA30A33NCV18
    Price:
    From Special Price €455.38 was €700.59
    In Stock: 2 pack.
hinge type concealed hinge
hinge shape rounded
door construction for non-rebated doors
door direction universal use for DIN right and left hand doors
class as per EN 1935 not certified, conforms with class 2 requirements
fire safety not suitable for fire and smoke safety doors
leaf material wood
load capacity middle
leaf maximum weight 60 kg
suitable for aluminium frames suitable
suitable for steel frames not suitable
suitable for industrial frames suitable using additional mounting parts
suitable for timber frames suitable
anti-corrosion resistance not certified
adjustment adjustable
adjustment type may be adjusted without removing door from its frame
groove for leaf seal no
anti-intruder protection yes
cutter diameter 24 mm
collar ring 30 mm
height 125 mm
milling depth for leaf part 35.5 mm
milling depth for frame part 21 mm
leaf part width 30 mm
frame part width 30 mm
maintenance not required (self-lubricating bearings)
installation template available for sale or rent
fastening elements must be ordered separately
material ZAMAK / ACETAL
Series ANSELMI
