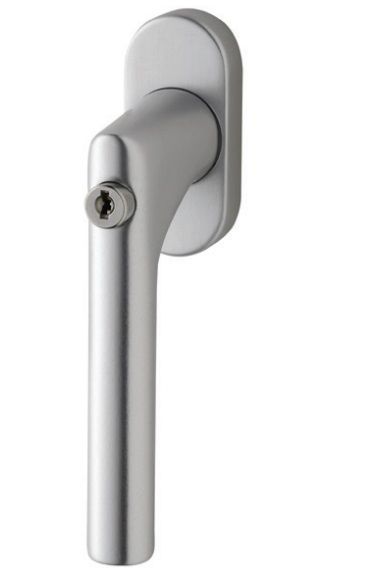

Locking window handle Dieckmann JANUS 1010 TBT
Manufacturer - DIECKMANN (Germany)
Manufacturer - DIECKMANN (Germany)
-
- locks with push cylinder
- 90° stop-in positions
- click-on rose covers
- die-cast, fully concealed sub-construction
- concealed screws M5
- handle length from centre: approx. 117 mm
- distance from rose surface to handle outer edge: approx. 52 mm
- rose size: 75 x 34 mm
- rose thickness: 14.5 mm
- fastening lugs: Ø 10 mm
- distance between fastening lug centres: 43 mm
- spindle: Ø 7 mm, length: 35 mm
- TBT (tilt before turn) function: opening sequence - closed (0°) -> tilted (90°) -> open (180°) - protects against accidental window opening, particularly in public buildings such as kindergartens, hospitals, and nursing homes
- TBT window handles function only when combined with a TBT window drive
- material:
-
-
- stainless steel
-
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Locking window handle 1010 with TBT, stainless steelCode: SB00011086Art. Nr.: 1010/3035/00Price:From €48.96In Stock: 0 pc.
| Manufacturer | DIECKMANN |
|---|---|
| material | stainless steel |
| purpose | for tilt and turn windows |
| fastening type | covered |
| installation type | screw-on base with a click-on rose |
| construction | Vienpusējs rokturis |
| material: sub-construction | solid steel |
| handle length (from centre of spindle) | 125 mm |
| function | locking |
| rose type | standard |
| backplate/rose shape | oval |
| shape | L-shape |
| backplate/rose size | 34 x 75 mm |
| stop-in positions | TBT 90° |
| spindle length | 35 mm |
| durability in accordance with EN 13126 | not certified |
| centring lug diameter | 10 mm |
| fastening centre distance | 43 mm |
| distance from leaf surface to outer edge of handle | 66.5 mm |
| backplate/rose thickness | 14.5 mm |
| handle square spindle size | 7 mm |
