Concealed hinge INVISACTA IN301
Manufacturer - OTLAV (Italy)

    • ideal solution for modern doors
    • may be leaf or frame-mounted
    • non-adjustable
    • suitable for non-rebated wooden doors
    • suitable for both left and right hand doors
    • high level of durability, ensured by the 7 joint hinges and durable nylon receiver
    • size: 90 x 30 mm
    • depth of the milling in the frame: 21 mm
    • opening angle: 180°
    • diameter: 9 mm
    • maximum load capacity: 40 kg (2 hinges per leaf)
    • material metal alloy ZAMAK: silver tone


All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

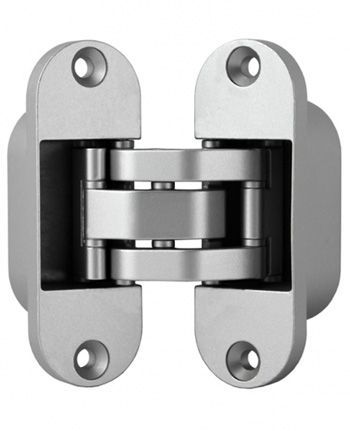

  1. INVISACTA  cocealed hinge 30x90 mm
    INVISACTA cocealed hinge 30x90 mm
    Code: SB00018793
    Art. Nr.: IN301090V702
    From €12.23
    In Stock: 83 pc.
adjustment not adjustable
anti-corrosion resistance not certified
anti-intruder protection yes, protected hinge design
base assortment Yes
class as per EN 1935 not certified
door construction for non-rebated doors
door direction universal use for DIN right and left hand doors
fire safety not suitable for fire and smoke safety doors
groove for leaf seal no
height 90 mm
hinge shape rounded
hinge type concealed hinge
installation template available to order
leaf maximum weight 40 kg
leaf material wood
load capacity middle
maintenance not required (self-lubricating bearings)
Manufacturer OTLAV
material ZAMAK
suitable for aluminium frames suitable using additional mounting parts
suitable for industrial frames suitable
suitable for steel frames suitable using additional mounting parts
suitable for timber frames suitable
