Concealed hinges for residential doors ANSELMI AN 150 3D 28
Product code
MB00009989
All prices include VAT
From
€18.04
Only %1 left
Concealed hinges for interior doors ANSELMI AN150 3D 28
Manufacturer - SIMONSWERK GROUP / ANSELMI (Italy)
- Fully integrated hinges for interior doors weighing up to 40 kg
- Suitable for 28 mm thick wooden doors with rebate
- For wooden, aluminum, and industrial frames
- Adjustable in 3 dimensions: sideways (+/- 1.5 mm), depth (+/- 1.0 mm), and height (+/- 2.5 mm)
- adjustment can be made without removing the door
- universal for both door directions
- centered mounting
- bearing technology that does not require special maintenance
- Load capacity: 40 kg (applies to a door 900 x 2100 mm equipped with 2 hinges)
- Opening angle: 180º
- Height: 110 mm
- width (door part / frame part): 28 / 20 mm
- cutter Ø: 16 mm
- material: zinc alloy ZAMAK
- standard finishes:
- matt chrome (AN 014)
- black (AN 018)
- Finishes available on request:
- antique bronze tone (AN 035)
- polished brass (AN 037)
- satin nickel (AN 044)
- Chrome aluminum tone (AN 036)
- Polished chrome (AN 039)
- White RAL 9016 (AN 049)
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

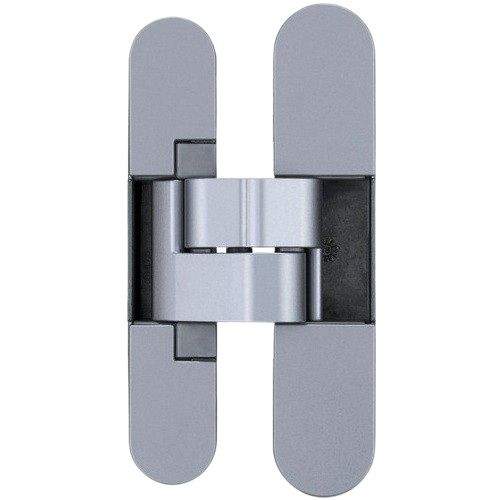

Concealed hinge ANSELMI AN 150 3D 28, satin chromeCode: SB00028902Art. Nr.: AN 150 3D 28 (14)Price:From €18.04In Stock: 0 pc. -

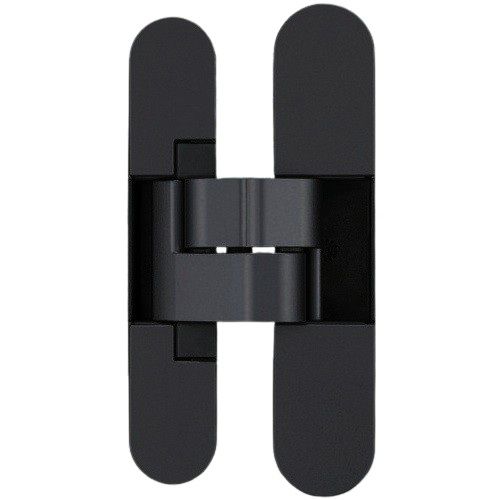

Concealed hinge ANSELMI AN 150 3D 28, blackCode: SB00028906Art. Nr.: AN 150 3D 28 (18)Price:From €18.04In Stock: 0 pc.
| Manufacturer | SIMONSWERK |
|---|---|
| hinge type | concealed hinge |
| hinge shape | rounded |
| door construction | for non-rebated doors |
| door direction | universal use for DIN right and left hand doors |
| class as per EN 1935 | not certified, conforms with class 2 requirements |
| fire safety | not suitable for fire and smoke safety doors |
| leaf material | wood |
| load capacity | middle |
| leaf maximum weight | 40 kg |
| suitable for aluminium frames | suitable |
| suitable for steel frames | not suitable |
| suitable for industrial frames | suitable using additional mounting parts |
| suitable for timber frames | suitable |
| anti-corrosion resistance | not certified |
| adjustment | adjustable |
| adjustment type | may be adjusted without removing door from its frame |
| groove for leaf seal | no |
| anti-intruder protection | yes |
| cutter diameter | 16 mm |
| collar ring | 30 mm |
| height | 110 mm |
| milling depth for leaf part | 28 mm |
| milling depth for frame part | 20 mm |
| leaf part width | 20 mm |
| frame part width | 23 mm |
| maintenance | not required (self-lubricating bearings) |
| installation template | available for sale or rent |
| fastening elements | must be ordered separately |
| material | ZAMAK |
| Series | ANSELMI |
