Concealed hinges for interior doors ANSELMI AN 164 3D FVZ 12/38 with recessed frame facings

Concealed hinges for interior doors ANSELMI AN164 3D FVZ 12/38 with recessed frame facings

Manufacturer - SIMONSWERK GROUP / ANSELMI (Italy)

• hinges completely integrated into door leaf and frame, for interior doors weighing up to 60 kg
• suitable for unrebated wooden with 38 mm door thickness
• recessed frames up to 12 mm
• for timber, aluminium and casing frames
• 3D adjustment: side (+/- 1,5 mm), compression (+/- 1,0 mm) and height (+/- 2,5 mm)
• may be adjusted without removing the door from its frame
• suitable for both left and right hand doors
• central installation
• maintenance-free bearings
• load capacity: 60 kg (refers to use of 2 hinges per door leaf 900 x 2100 mm)
• opening angle: 180º
• overall length: 125 mm
• width (door part / frame part): 30 / 30 mm
• cutter diameter: 24 mm
• central installation
• material: zamak
• standard finishes:

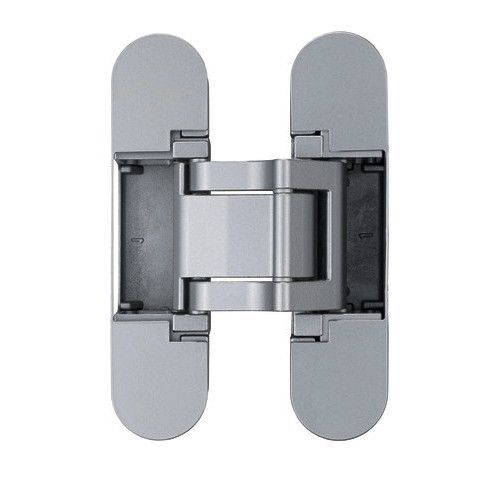

  • satin chrome (AN 014)

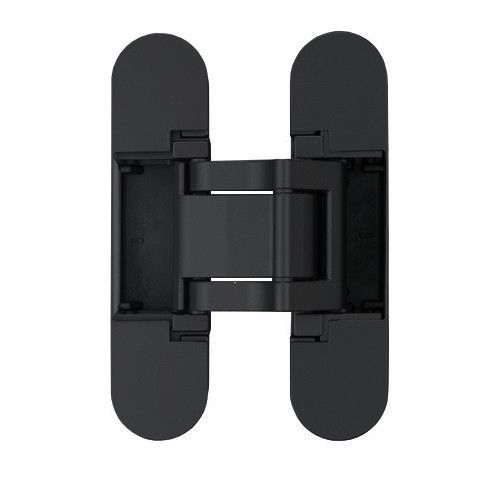

  • black (AN 018)
• finishes available on request:
  • antique bronze (AN 035)
  • polished brass (AN 037)
  • satin nickel (AN 044)
  • aluminium chrome (AN 036)
  • polished chrome (AN 039)
  • traffic white RAL 9016 (AN 049)
  • light bronze tone (AN 016)
  • medium dark bronze tone (AN 051)
  • anthracite (AN 050)
  • copper tone (AN 052)

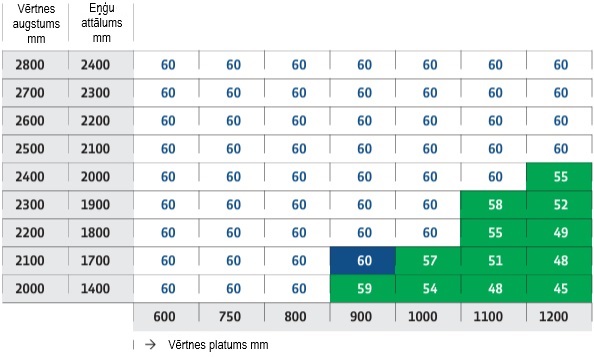

Permissible load values with different leaf width and height ratios

TECHNICAL DOCUMENTS

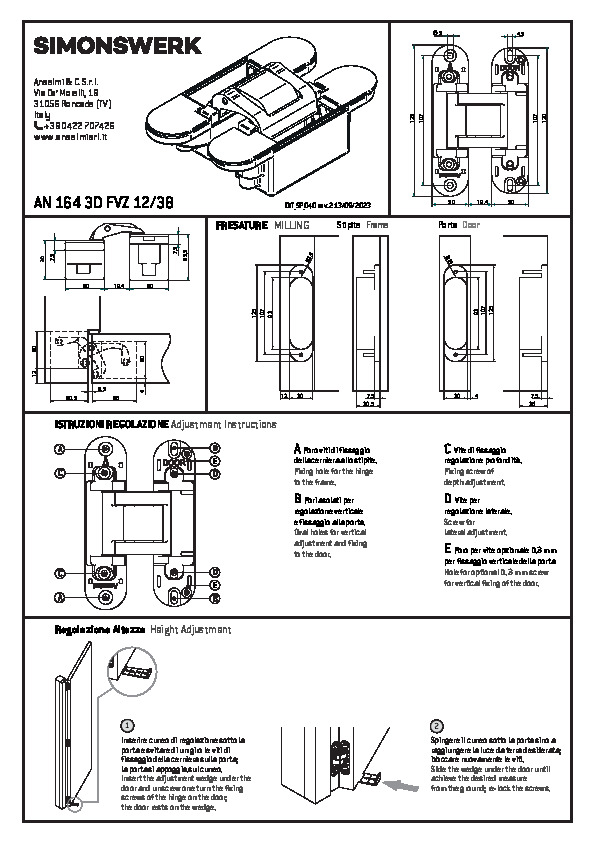

ANSELMI AN 164 3D FVZ 12/38 - Installation manual (IT/EN)

ANSELMI hinge load values 60kg (EN)
