Concealed hinge for interior doors ECLIPSE 3.2
Product code
MB00009802
All prices include VAT
From
€13.81
Only %1 left
Slēptās eņģes iekšdurvīm ECLIPSE 3.2
Ražotājs - AGB-
- regulējamas 3 dimensijās: sāniski (+/- 1.5 mm), dziļumā (+/- 1 mm) un augstumā (+/- 2 mm)
- universālas abiem vērtņu virzieniem
- atvēruma leņķis: 180º
- augstums: 115 mm
- slodzes izturība: 60 kg (3 eņģes uz 1 vērtnes)
- regulēšana veicama, neizceļot durvis
- gultņu tehnoloģija, kas neprasa speciālu kopšanu
- iespējamās apstrādes:
-
-
- hromēti matēta
- melna
- balta
- misiņa tonī PVD
-
TEHNISKĀ DOKUMENTĀCIJA
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

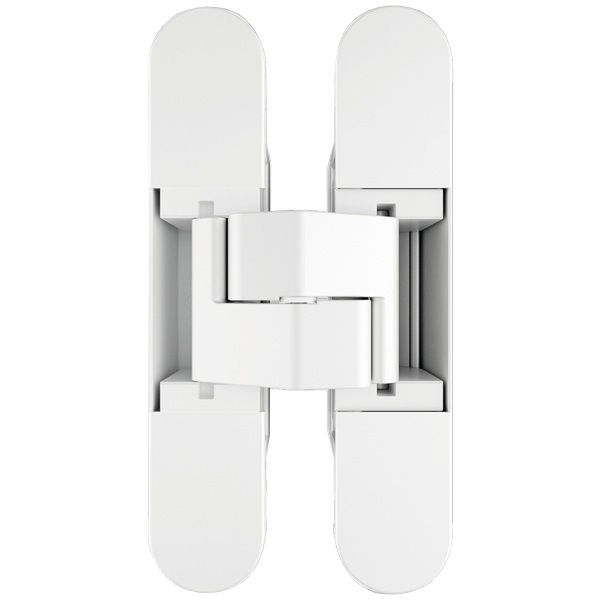

ECLIPSE 3.2 concealed hinge, whiteCode: SB00026076Art. Nr.: V933Price:From €15.81In Stock: 0 pc. -

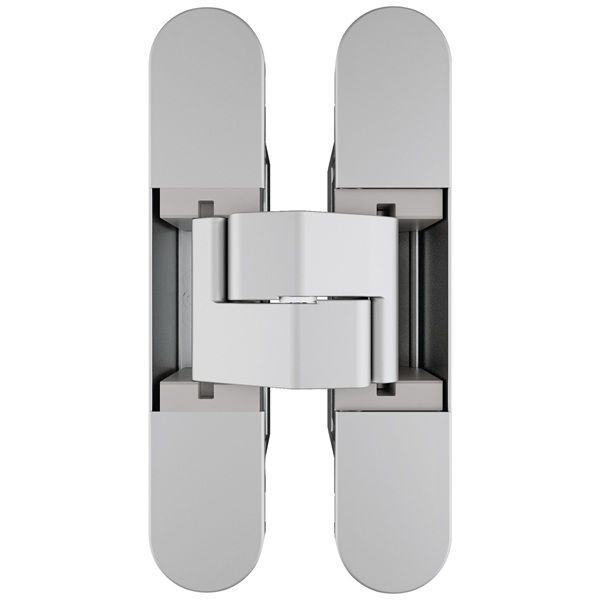

ECLIPSE 3.2 concealed hinge, matt chromeCode: SB00026074Art. Nr.: V932Price:From €13.81In Stock: 0 pc.
-
ECLIPSE 3.2 concealed hinge, blackCode: SB00026075Art. Nr.: V934Price:From €15.81In Stock: 0 pc.
-

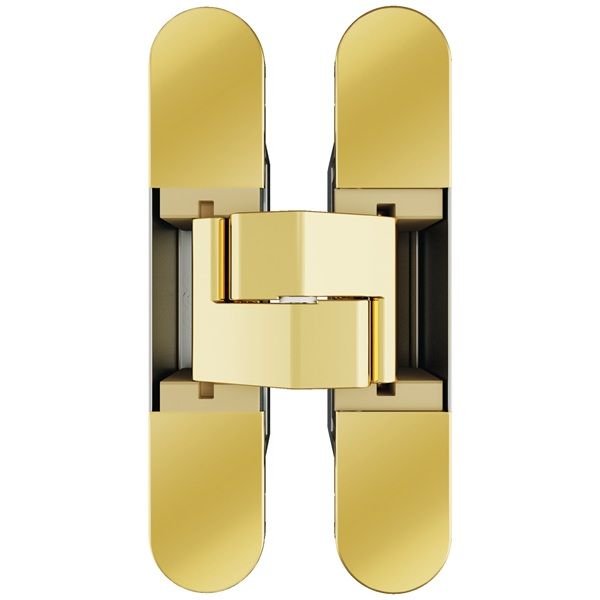

ECLIPSE 3.2 concealed hinge, brass PVDCode: SB00026077Art. Nr.: V936Price:From €16.48In Stock: 0 pc.
| Manufacturer | AGB |
|---|---|
| hinge type | concealed hinge |
| hinge shape | rounded |
| door construction | for non-rebated doors |
| door direction | universal use for DIN right and left hand doors |
| class as per EN 1935 | not certified |
| fire safety | suitable for fire and smoke safety doors |
| leaf material | wood |
| load capacity | middle |
| leaf maximum weight | 60 kg |
| suitable for aluminium frames | suitable using additional mounting parts |
| suitable for steel frames | suitable using additional mounting parts |
| suitable for industrial frames | suitable using additional mounting parts |
| suitable for timber frames | suitable |
| anti-corrosion resistance | no |
| adjustment | adjustable |
| adjustment type | may be adjusted without removing door from its frame |
| groove for leaf seal | no |
| anti-intruder protection | no |
| height | 115 mm |
| maintenance | not required (self-lubricating bearings) |
| installation template | available for sale or rent |
| fastening elements | included in set |
| material | ZAMAK |
| Series | ECLIPSE |
