Slēptās eņģes pārfalces ārdurvīm TECTUS TE 680 3D FD RAL9005
Product code
MB00001340-M
All prices include VAT
From
€130.09
From
€130.09
Only %1 left
Questions and answers

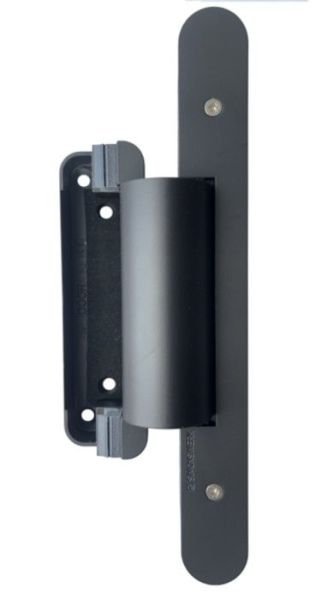

Slēptās eņģes pārfalces ārdurvīm TECTUS TE 680 3D FD
Ražotājs - SIMONSWERK (Vācija)- slēptu eņģu sistēma koka ārdurvīm ar pārfalci
- pilnkoka, industriālajām un alumīnija/metāla kārbām
- regulējamas 3 dimensijās: sāniski (+/- 3 mm), dziļumā (+/- 1 mm) un augstumā (+/- 3 mm)
- atvēruma leņķis līdz 180º
- pārfalces platums: 18 mm
- pārfalces biezums: 21 - 27 mm
- kopējais augstums 160 mm
- platums: 40,5 mm (vērtnes daļa); 30,0 mm (kārbas daļa)
- frēzes Ø 20 mm
- slodzes izturība - līdz 160 kg (attiecas uz vērtni 1000 x 2000 mm, kas aprīkotas ar 2 eņģēm; eņģu savstarpējais attālums: 1435 mm)
- regulēšana veicama, neizceļot durvis
- caurejošs blīvējums
- gultņu tehnoloģija, kas neprasa speciālu kopšanu
- apstrāde - krāsotas melnas pēc RAL9005
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
TECTUS TE 680 3D FD concealed hinge for rebated doors, black RAL9005Code: SB00008953Art. Nr.: 5 400685 0 10703Price:From €130.09In Stock: 17 pc.
| Manufacturer | SIMONSWERK |
|---|---|
| base assortment | No |
| collar ring | 30 mm |
| door construction | for rebated doors |
| leaf material | wood |
| door direction | universal use for DIN right and left hand doors |
| anti-intruder protection | yes, protected hinge design |
| hinge shape | rounded |
| suitable for aluminium frames | not suitable |
| suitable for steel frames | not suitable |
| suitable for industrial frames | suitable using additional mounting parts |
| suitable for timber frames | suitable |
| maintenance | not required (self-lubricating bearings) |
| class as per EN 1935 | class 4 |
| hinge type | concealed hinge |
| fire safety | not suitable for fire and smoke safety doors |
| adjustment type | may be adjusted without removing door from its frame |
| adjustment | adjustable |
| fastening elements | included in set |
| load capacity | very high |
| installation template | available for sale or rent |
| overlap width | 21-27 mm |
| material | ZAMAK |
| groove for leaf seal | yes |
| anti-corrosion resistance | certified according to EN 1935 - depending on finish |
| leaf maximum weight | 160 kg |
| height | 160 mm |
| cutter diameter | 20 mm |
