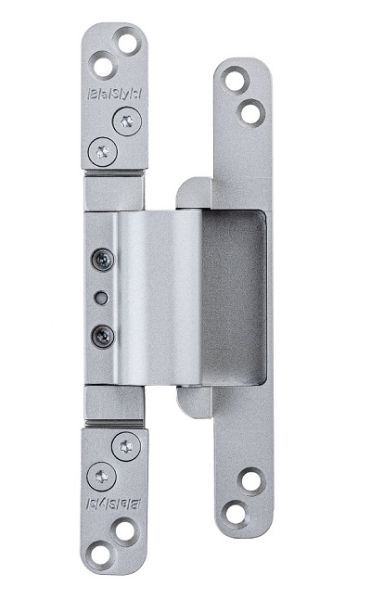

Concealed hinges PIVOTA® FX2 80 3-D
Product code
MB00001720
All prices include VAT
From
€51.65
Only %1 left
Concealed hinges PIVOTA® FX2 80 3-D
Manufacturer - BaSys (Germany)
Manufacturer - BaSys (Germany)
-
- hinges mortised into frame and door, suitable for rebated interior doors
- opening angle: 180°
- suitable for rebated wooden doors
- 3-dimensional adjustability: side (+/- 1 mm), depth (+/- 3 mm) and height (+/- 3 mm), see manual for installation and adjustment
- suitable for both left and right hand doors
- size: 153x19 mm / 174 x 21 mm
- max load: 80 kg (with 2 hinges)
- maintenance-free bearings
- innovative adjustment technology for modern rebated doors, taken from the concealed "Masterband" hinge
- smaller leaf part of the hinge that does not move and remains concealed while being adjusted
- may also be used for doors with a thickness of 40 mm
- classification code according to DIN EN 1935: 3 7 4 0 1 3 0 11
- material: nickel-plated matt (F2)
Montāžas instrukcijas un regulēšana
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
PIVOTA FX2 80 3-D concealed hinge for rebated doors, matt nickelCode: SB00016225Art. Nr.: 041108Price:From €51.65In Stock: 0 pc.
| Manufacturer | BASYS |
|---|---|
| hinge type | concealed hinge |
| hinge shape | rounded |
| door construction | for rebated doors |
| door direction | universal use for DIN right and left hand doors |
| class as per EN 1935 | class 3 |
| fire safety | not suitable for fire and smoke safety doors |
| leaf material | wood |
| load capacity | high |
| leaf maximum weight | 80 kg |
| suitable for aluminium frames | suitable using additional mounting parts |
| suitable for steel frames | suitable using additional mounting parts |
| suitable for industrial frames | suitable |
| suitable for timber frames | suitable |
| anti-corrosion resistance | class 3 according to EN 1935 - high |
| corner radius | R7.5 |
| adjustment | adjustable |
| groove for leaf seal | no |
| anti-intruder protection | yes, protected hinge design |
| height | 174 mm |
| maintenance | not required (self-lubricating bearings) |
| installation template | available to order |
| fastening elements | included in set |
| material | aluminium |
| Series | PIVOTA |
