Sliding ladder KLASSIK TANGENS SL.6006.KL for particularly high shelves

Sliding ladder KLASSIK TANGENS SL.6006.KL

Manufacturer - MWE (Germany)

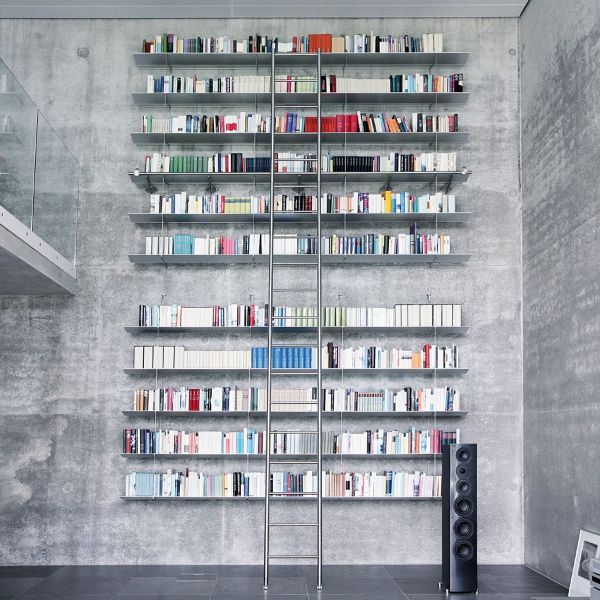

Indoor sliding ladders mounted on a rail, featuring a classic roller mechanism and extended side rails, are designed to provide convenient and safe access to particularly high shelves. The extended side rails project above the track and serve as handles, providing additional support when reaching greater heights. This allows users to stand safely and securely on the top rung to reach books or other items on the highest shelves. A second roller on the track prevents the ladder from being accidentally lifted off the track. By lifting the ladder slightly, it can be moved easily and smoothly to the desired section of shelving. TANGENS ladders provide convenient and safe access to high shelves, making efficient use of the available room height. They are suitable for flats and houses with high ceilings, as well as offices, retail spaces, shops and, in particular, libraries.

A variety of step materials, finishes and colours allows the ladder design to be tailored to the interior, creating a harmonious overall look in which the ladder becomes not only a functional element but also an integral part of the interior design.

Advantages

• round-profile stainless steel ladder and a choice of stainless steel or wooden steps, available in any colour from the RAL colour range, allow the ladder design to be tailored to suit a wide variety of interiors
• special roller head allows the ladder to glide effortlessly along the rail from one end to the other
• extended vertical rails for added safety when standing on the upper steps of the ladder
• the ladder lifts slightly when moved, preventing it from touching the wall or shelves
• equipped with adjustable base that adapt to the ladder's angle of inclination, or roller base featuring the Auto-stop function for enhanced safety
• secure locking at a 10° angle
• can be fitted with matching handrails for added safety and stability

Technical data

• round profile guide rail: Ø20 mm
• installation: wall-mounted
• diameter of mounting roses: 20 / 40 / 50 / 60 mm (to be specified when ordering)
• distance between the centres of the mounting roses: max. 900 mm
• standard ladder length: 1.50 - 3.50 m (to be specified when ordering)
• vertical rails with a round profile Ø30 mm
• fixed at a 10° angle; when moved, the ladder tilts upwards at an angle of approximately 6°
• step spacing: 250 mm
• extension rail height: 800 mm from the centre of the mounting point
• distance from the shelving unit when in the parked position: 89 mm
• maximum load capacity: 150 kg
• optional accessory: handrails
  • handrails are included as standard for ladders with a height of 3000 mm or more

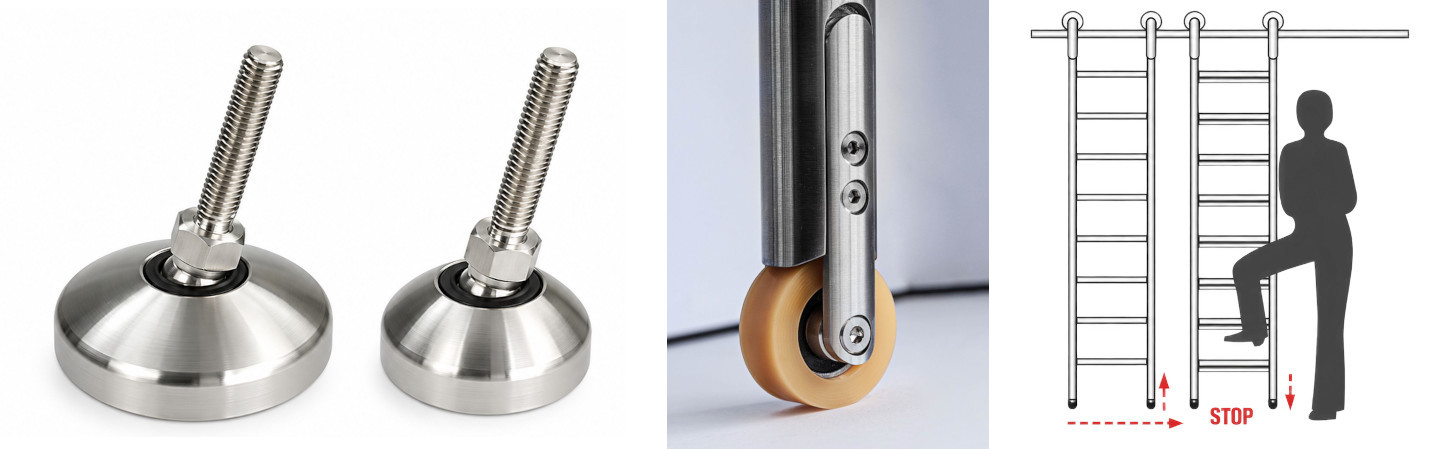

• two types of ladder base available:
  • articulating circular base - small / large; adaptable to the ladder's angle of inclination
  • roller base with an auto-stop function that activates the braking mechanism as soon as the ladder is in use

Material and finish options

• material: stainless steel
• standard finish: 600-groit satin matte finish, final sanding using the Scotch-Brite® procedure
• available on request: high-gloss polished finish
• available on request: PVD coating in a matte or polished finish, resistant to abrasion, in copper, gold, brass, titanium or black (available for components up to 1500 mm in length)

Steps

TECHNICAL DOCUMENTS

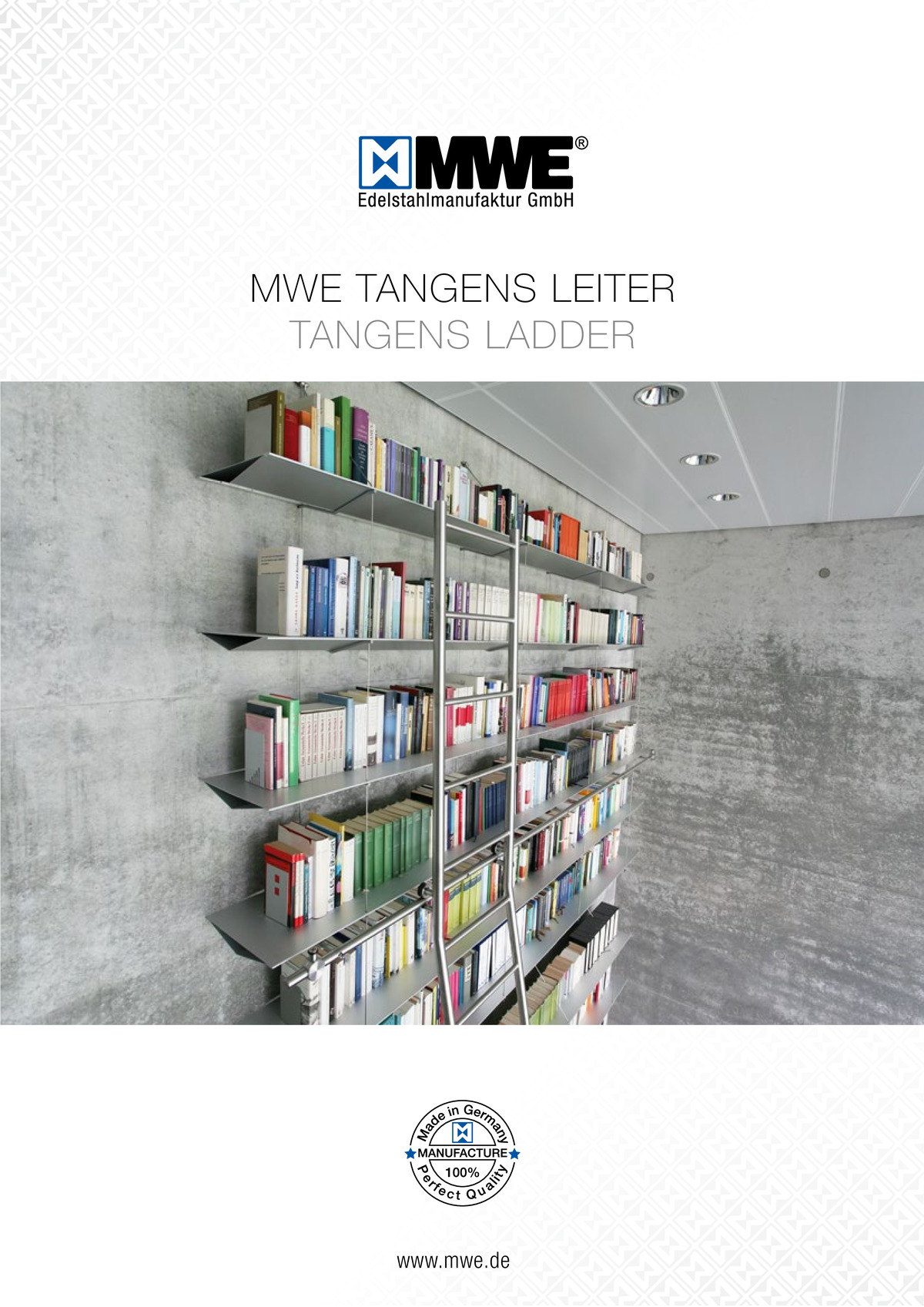

MWE Tangens sliding ladder - catalogue

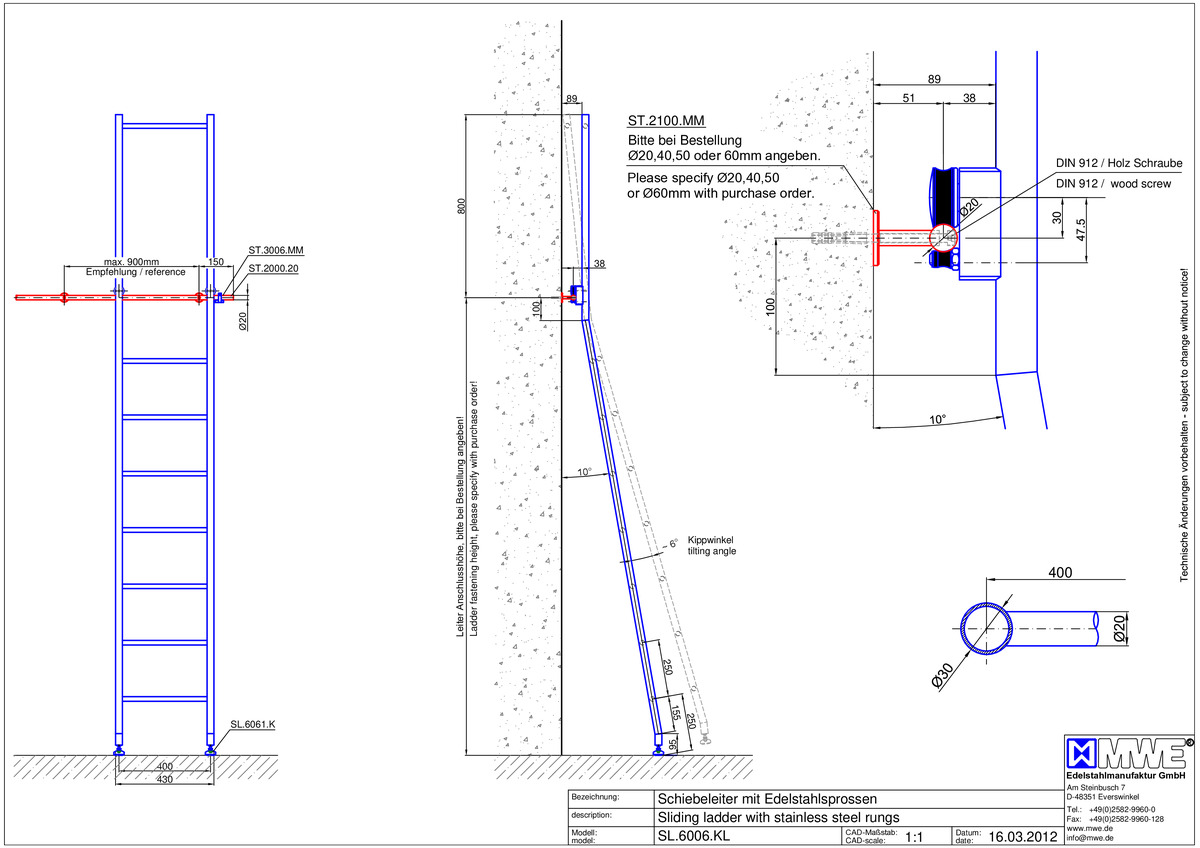

SL.6006.KL MWE KLASSIK TANGENS sliding ladder with stainless steel rungs - tehcnical information

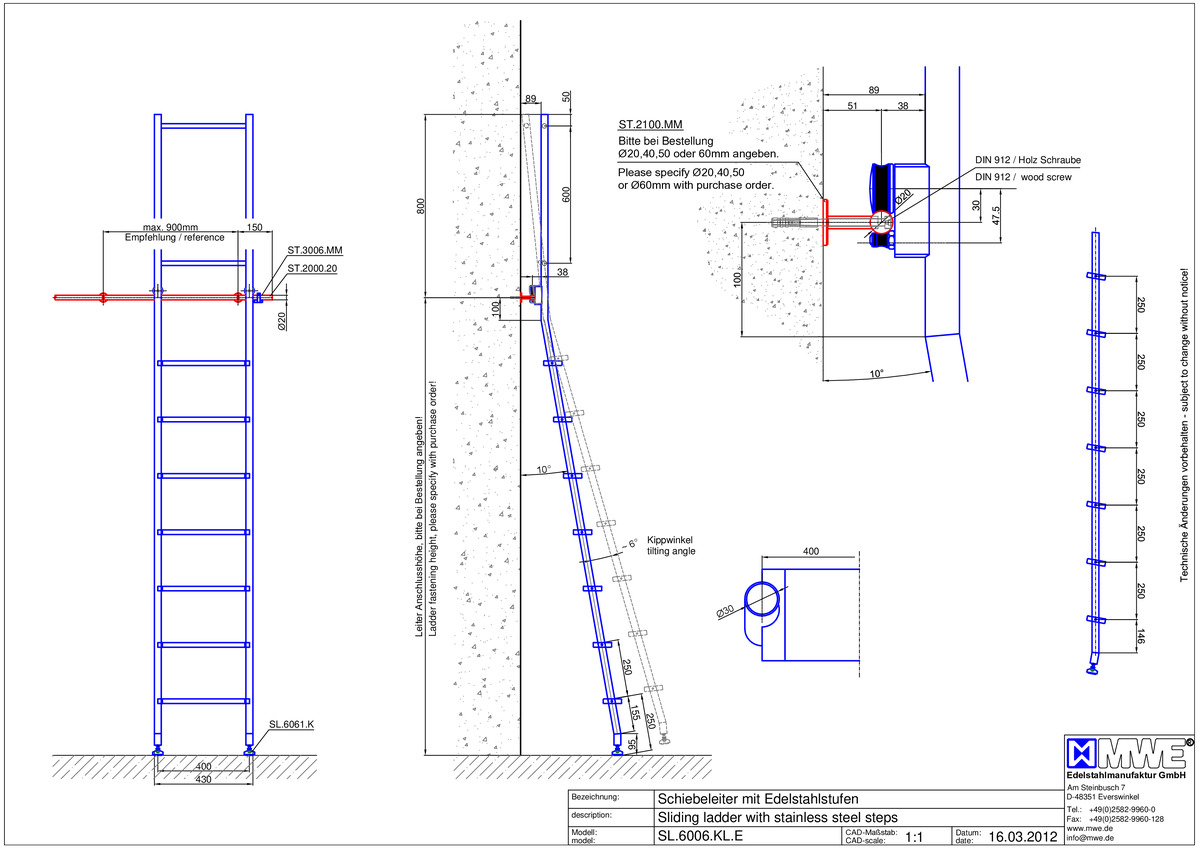

SL.6006.KL MWE KLASSIK TANGENS sliding ladder with stainless steel steps - tehcnical information

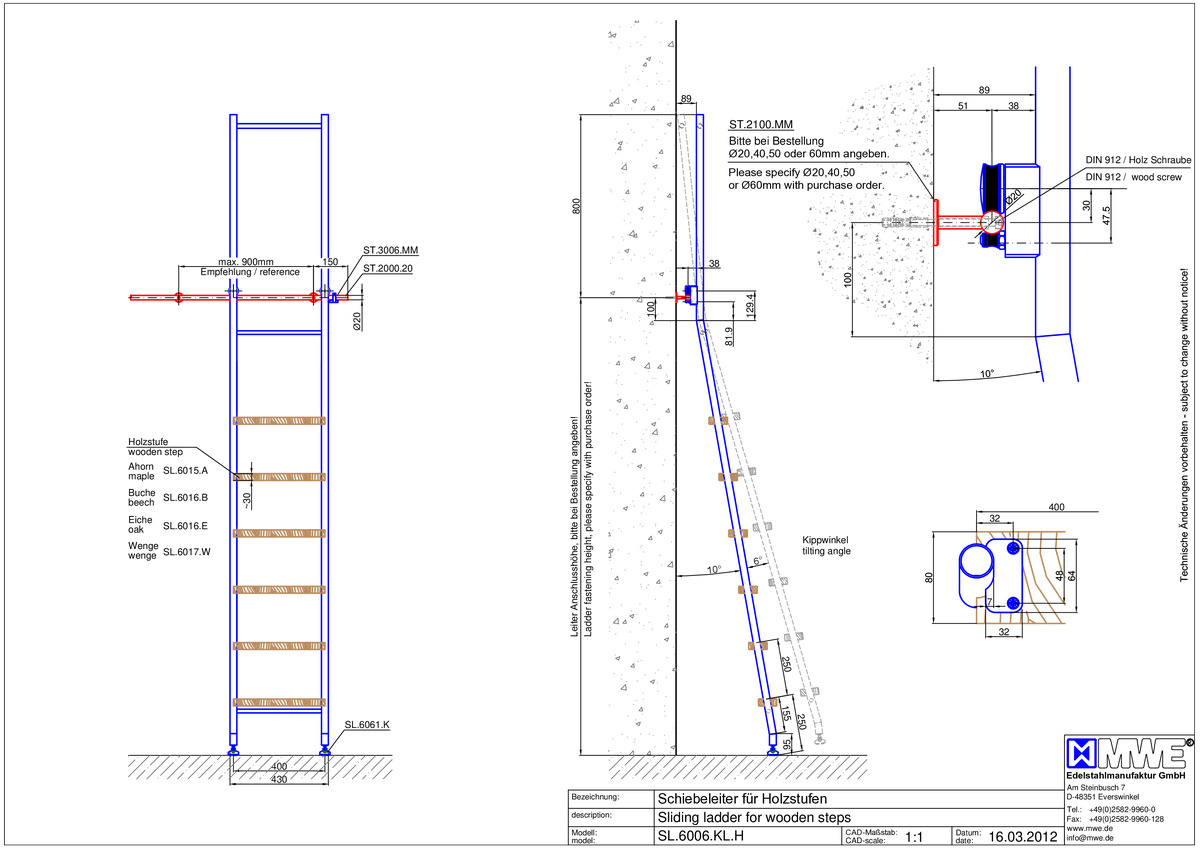

SL.6006.KL MWE KLASSIK TANGENS sliding ladder with wooden steps - tehcnical information
