Sliding ladder KLASSIK VARIO SL.6004.KL

Sliding ladder KLASSIK VARIO SL.6004.KL

Manufacturer - MWE (Germany)

Vario sliding ladders are a practical and elegant solution for shelving systems that extend along multiple walls. Thanks to a special swiveling head technology and an additional roller, the ladder can be moved easily and safely around corners and along a long, curved rail. By lifting the ladder slightly, it can be smoothly moved to the desired section of shelving, while the stable support ensures safety during use. Vario ladders are particularly suitable for spaces where ladders are used frequently, such as retail spaces and libraries. They also fit perfectly into home libraries and other rooms with tall, spacious shelving, combining practical functionality with a distinctive interior design feature.

A variety of step materials, finishes and colours allows the ladder design to be tailored to the interior, creating a harmonious overall look in which the ladder becomes not only a functional element but also an integral part of the interior design.

Advantages

• round-profile stainless steel ladder and a choice of stainless steel or wooden steps, available in any colour from the RAL colour range, allow the ladder design to be tailored to suit a wide variety of interiors
• the special swiveling head technology allows the ladder to glide effortlessly along long, curved rails
• the ladder lifts slightly when moved, preventing it from touching the wall or shelves
• equipped with adjustable base that adapt to the ladder's angle of inclination, or roller base featuring the Auto-stop function for enhanced safety
• secure locking at a 10° angle
• can be fitted with matching handrails for added safety and stability

Technical data

• round profile guide rail: Ø25 mm
• installation: wall-mounted
• curved rail radius on request
• diameter of mounting roses: 50 mm
• distance between the centres of the mounting roses: max. 900 mm
• standard ladder length: 1.50 - 3.50 m (to be specified when ordering)
• vertical rails with a round profile Ø30 mm
• fixed at a 10° angle; when moved, the ladder lifts and its angle of inclination changes
• step spacing: 250 mm
• maximum load capacity: 150 kg
• optional accessory: handrails
  • handrails are included as standard for ladders with a height of 3000 mm or more

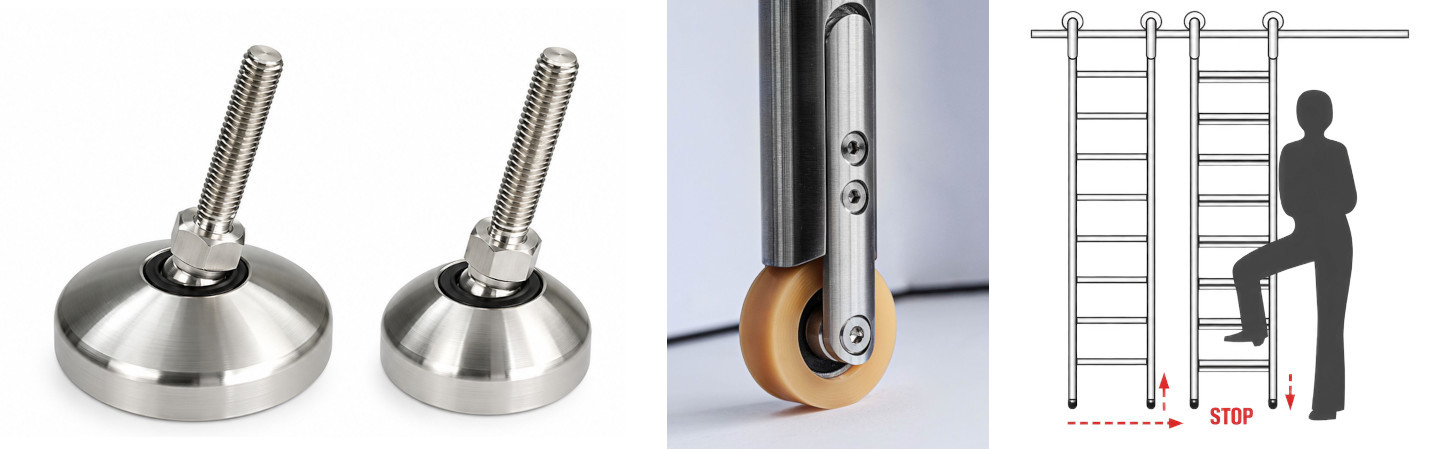

• two types of ladder base available:
  • articulating circular base - small / large; adaptable to the ladder's angle of inclination
  • roller base with an auto-stop function that activates the braking mechanism as soon as the ladder is in use

Material and finish options

• material: stainless steel
• standard finish: 600-groit satin matte finish, final sanding using the Scotch-Brite® procedure
• available on request: high-gloss polished finish
• available on request: PVD coating in a matte or polished finish, resistant to abrasion, in copper, gold, brass, titanium or black (available for components up to 1500 mm in length)

Steps

TECHNICAL DOCUMENTS

MWE Vario sliding ladder - catalogue

MWE KLASSIK VARIO SL.6004.KL sliding ladder with stainless steel rungs - technical information

MWE KLASSIK VARIO SL.6004.KL sliding ladder with stainless steel steps - technical information

MWE KLASSIK VARIO SL.6004.KL sliding ladder with wooden steps - technical information
