Door knob set for fireproof emergency door FSB 79 1031 1704 0811 FS NT

Product code
MB00009572
All prices include VAT
From €371.91
From €371.91
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.

Door knob set for fireproof emergency doors FSB 79 1031 1704 0811 FS NT

Manufacturer - FSB (Germany)
Design: Heike Falkenberg

  • handle/door knob set with square roses for fireproof emergency doors
  • FSB AGL® construction with concealed handle guide ring
  • corresponds to grade 4 in use and durability according to EN 1906, suitable for use in doors with high usage such as in public buildings
  • construction durability tested on 1'000'000 cycles of use
  • complies with DIN 18 273 and EN 1634-1 standards for fire safety doors
  • complies with EN 179 standard for emergency door equipment
  • integrated spring for lock load release with active angle of 35°
  • stainless steel reinforced sub-construction
  • handle length: 142 mm
  • distance from rose surface to external surface of handle: 58 mm
  • inactive square door knob FSB 0811
  • door knob size: 50 x 50 mm
  • set with square handle and key roses
  • PZ keyhole
  • rose size: 55 x 55 mm
  • rose thickness: 7 mm
  • fixed supporting lugs Ø9 mm
  • distance between fastening centres: 38 mm
  • split spindle: 9 mm
  • standard set suitable for door thickness of 39-48 mm
  • possible to order sets for door thickness of 29-98 mm
  • please indicate interior handle direction upon ordering
  • material: stainless steel
  • available finishes:
    • matt satin (standard finish)
    • polished
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Visma Quote

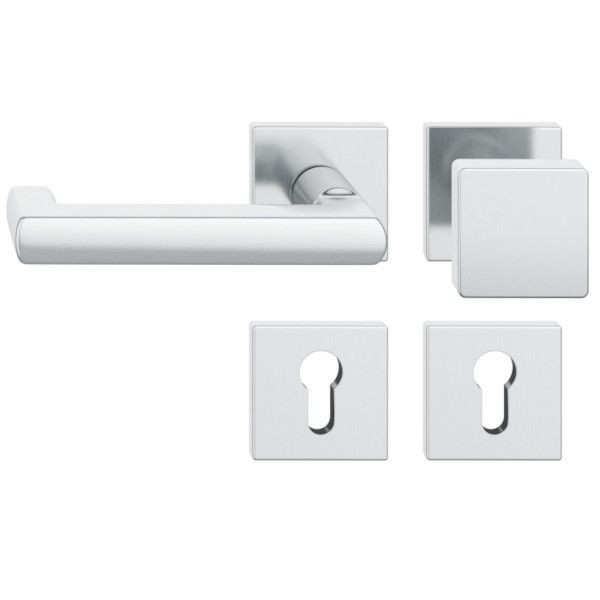

    FSB 79 1031 door knob set with PZ square roses for fireproof emergency doors, stainless steel,LEFT
    FSB 79 1031 door knob set with PZ square roses for fireproof emergency doors, stainless steel,LEFT
    Code: SB00022877
    Art. Nr.: 0 79 1031 64210 6204
    Price:
    From €371.91
    In Stock: 0 set
  2. Visma Quote

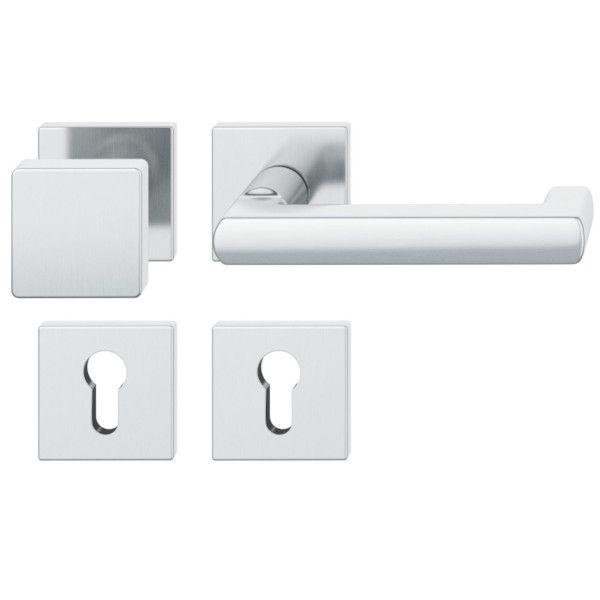

    FSB 79 1031 door knob set with PZ square roses for fireproof emergency doors, stainless steel,RIGHT
    FSB 79 1031 door knob set with PZ square roses for fireproof emergency doors, stainless steel,RIGHT
    Code: SB00022872
    Art. Nr.: 0 79 1031 64110 6204
    Price:
    From €371.91
    In Stock: 0 set
Manufacturer FSB
Series FSB 1031
material stainless steel
leaf material for wooden and metal doors
purpose for interior doors / for exterior doors
construction lever handle / inactive door knob
position of door handle not offset
load capacity high
class as per EN 1906 class 4
suitable for emergency exits complies with 179 - emergency door equipment
fire safety fire safety certified according to EN1906
handle spring integrated holding spring to cushion the push and pull forces
handle construction with stable fixed pivot axis
material: sub-construction reinforced with stainless steel
compatibility standard German (DIN)
handle length 142 mm
handle square spindle size 9 mm
set split roses
backplate/rose shape square
locking function PZ - with profile cylinder hole
Handle direction please indicate interior handle direction upon ordering
backplate/rose thickness 7 mm
backplate/rose size 55 x 55 mm
installation type screw on
fastening type concealed screw fitting
