Fireproof handle for framed doors Dieckmann 1430 NT FS

Product code
MB00009045
All prices include VAT
From €57.54
From €57.54
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.

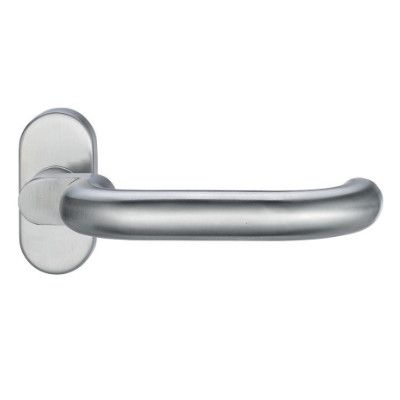

Fireproof stainless steel handle for framed doors Dieckmann 1430
Manufacturer - DIECKMANN (Germany)

    • spring-loaded lever handle firmly fixed into oval rose
    • suitable for both left and right hand doors
    • steel sub-construction with click-on rose
    • covered screws Ø M5
    • suitable for use in emergency doors according to DIN EN 179 (only with suitable, certified handle spindles)
    • complies with DIN 18 273 standard for fire safety doors
    • rose size: 34 x 75 mm
    • rose thickness: 14,5 mm
    • handle length (from centre of spindle): 149 mm
    • distance from leaf surface to handle exterior surface: approx. 92 mm
    • spindle square: 9 mm
    • handle construction with angled grip reduces the risk of injury which may happen when opening/closing the door by the hand coming into contact with the door frame
    • material: stainless steel
    •
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Handle for framed doors 1130 FS ( for fire safety doors) on oval rose, st. steel
    Handle for framed doors 1130 FS ( for fire safety doors) on oval rose, st. steel
    Code: SB00011132
    Art. Nr.: 1430/2133/00
    Price:
    From €57.54
    In Stock: 0 pc.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. 811 PZ oval key rose 9mm, stainless steel
    811 PZ oval key rose 9mm, stainless steel
    Code: SB00011072
    Art. Nr.: 0811/9003/00
    Price:
    From €8.39
    In Stock: 10 pc.
  2. Atslēgas rozete 0813 BAC 6 mm, nerūs.tērauds
    Atslēgas rozete 0813 BAC 6 mm, nerūs.tērauds
    Code: SB00011415
    Art. Nr.: 0813/0000/00
    Price:
    From €8.49
    In Stock: 10 pc.
  3. Spindle for single-sided handle 8x60 mm, galvanised
    Spindle for single-sided handle 8x60 mm, galvanised
    Code: SB00000497
    Art. Nr.: 0 05 0115 00810 5700
    Price:
    From €7.39
    In Stock: 0 pc.
  4. Spindle for single-sided handle 8x70 mm, galvanised
    Spindle for single-sided handle 8x70 mm, galvanised
    Code: SB00000499
    Art. Nr.: 0 05 0115 00814 5700
    Price:
    From €7.60
    In Stock: 0 pc.
  5. Spindle for single-sided handle 8x80 mm, galvanised
    Spindle for single-sided handle 8x80 mm, galvanised
    Code: SB00000500
    Art. Nr.: 0 05 0115 00818 5700
    Price:
    From €7.83
    In Stock: 0 pc.
  6. Spindle for single-sided handle 8x90 mm, galvanised
    Spindle for single-sided handle 8x90 mm, galvanised
    Code: SB00000501
    Art. Nr.: 0 05 0115 00822 5700
    Price:
    From €7.83
    In Stock: 1 pc.
  7. Spindle for double-sided handle 8x120 mm, glavanised
    Spindle for double-sided handle 8x120 mm, glavanised
    Code: SB00022010
    Art. Nr.: 0 05 0118 00834 5700
    Price:
    From €2.52
    In Stock: 0 pc.
  8. Spindle for double-sided handle 8x140 mm, galvanised
    Spindle for double-sided handle 8x140 mm, galvanised
    Code: SB00022013
    Art. Nr.: 0 05 0118 00842 5700
    Price:
    From €2.52
    In Stock: 0 pc.
  9. Spindle for double-sided handle 8x160 mm, galvanised
    Spindle for double-sided handle 8x160 mm, galvanised
    Code: SB00022014
    Art. Nr.: 0 05 0118 00850 5700
    Price:
    From €2.52
    In Stock: 0 pc.
  10. Spindle for double-sided handle 8x175 mm, galvanised
    Spindle for double-sided handle 8x175 mm, galvanised
    Code: SB00022015
    Art. Nr.: 0 05 0118 00856 5700
    Price:
    From €2.52
    In Stock: 0 pc.
backplate/rose shape oval
backplate/rose size 34 x 75 mm
backplate/rose thickness 14.5 mm
class as per EN 1906 class 4
door direction universal use for DIN right and left hand doors
fastening centre distance 50 mm
fastening elements included in set
fastening type covered
fire safety fire safety certified according to EN1906
framed door handle construction offset (for finger protection)
handle construction with stable fixed pivot axis
handle length 149 mm
handle square spindle size 9 mm
handle spring integrated holding spring to cushion the push and pull forces
installation type screw on
leaf material for framed doors
load capacity high
locking function PZ - with profile cylinder hole
Manufacturer DIECKMANN
material stainless steel
material: sub-construction steel
purpose for interior doors
size 8 x 140 mm
suitable for emergency exits complies with 179 - emergency door equipment
