Fireproof door handle for framed doors FSB 09 1015 FS NT
Product code
MB00009080
All prices include VAT
From
€118.18
Only %1 left
Fireproof stainless steel handle for framed doors FSB 09 1015
Manufacturer - FSB (Germany)
Design: Johannes Potente
Manufacturer - FSB (Germany)
Design: Johannes Potente
-
- spring-loaded lever handle firmly fixed into oval rose
- suitable for both left and right hand doors
- covered screws Ø M5
- complies with DIN 18 273 standard for fire safety doors
- rose size: 32,5 x 70 mm
- rose thickness: 14 mm
- total length of handle (from rose inner edge): 126 mm
- distance between leaf surface and front surface of handle: approx. 69 mm
- spindle square for fireproof doors: 9 mm
- material: stainless steel
- available finishes:
-
-
- brushed satin matt (standard)
- polished (on request)
-
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

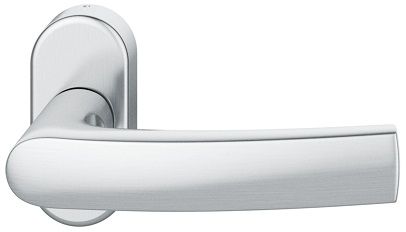

Handle for framed doors on oval rose, spring-loaded, 9 mm, for fire safety doors, st. steelCode: SB00000698Art. Nr.: 0 09 1015 21263 6204Price:From €118.18In Stock: 0 pc.
| Manufacturer | FSB |
|---|---|
| Series | FSB 1015 |
| designer | Johannes Potente |
| material | stainless steel |
| material properties (for specific finishes see tech. data) | PVD coating - suitable for use in aggressive environments |
| leaf material | for framed doors |
| purpose | for interior doors / for exterior doors |
| set | split roses |
| construction | one-sided handle female part on rose |
| class as per EN 1906 | class 4 |
| load capacity | high |
| suitable for emergency exits | related model available, complies with EN 179 requirements |
| fire safety | fire safety certified according to EN1906 |
| door direction | universal use for DIN right and left hand doors |
| compatibility standard | German (DIN) |
| position of door handle | not offset |
| handle construction | with stable fixed pivot axis |
| material: sub-construction | solid steel |
| handle spring | integrated holding spring to cushion the push and pull forces |
| handle length | 126 mm |
| handle square spindle size | 9 mm |
| backplate/rose shape | oval |
| backplate/rose thickness | 14 mm |
| backplate/rose size | 32,5 x 70 mm |
| installation type | screw on |
| fastening type | concealed screw fitting |
