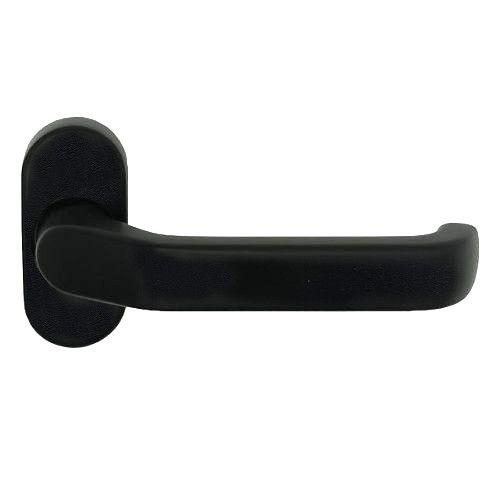

Fireproof aluminium handle for framed panic doors ARES 1200 FS

Manufacturer - DIECKMANN (Germany)

  • spring-loaded lever handle firmly fixed into oval rose
  • conforms to DIN EN 1906 class 4
  • suitable for emergency doors according to DIN EN 179 (only combined with suitable, certified door spindles)
  • complies with DIN 18 273 standard for fire safety doors
  • handle construction with angled grip reduces the risk of injury which may happen when opening/closing the door by the hand coming into contact with the door frame
  • suitable for both left and right hand doors
  • steel sub-construction with click-on rose
  • covered screws Ø M5
  • rose size: 34 x 75 mm
  • rose thickness: 14,5 mm
  • handle length: 143 mm
  • distance from leaf surface to external surface of handle: approx. 69,5 mm
  • spindle square: 9 mm
  • material: aluminium anodized
  • available finishes:
    • natural aluminium tone (F1)
    • matt black RAL9005, powder coated (F14)
    • matt black RAL9005, structured (F44)
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Visma Quote
    Fire-proof handle for framed panic doors ARES 1200 FS 1200, without spindle,  9mm, F14 aluminium black RAL9005
    Fire-proof handle for framed panic doors ARES 1200 FS 1200, without spindle, 9mm, F14 aluminium black RAL9005
    Code: SB00021049
    Art. Nr.: 1200/2133/14
    Price:
    From €44.99
    In Stock: 0 pc.
  2. Visma Quote
    Fire-proof handle for framed panic doors ARES 1200 FS, without spindle,  9mm, F44 aluminium black structured
    Fire-proof handle for framed panic doors ARES 1200 FS, without spindle, 9mm, F44 aluminium black structured
    Code: SB00025028
    Art. Nr.: 1200/2133/44
    Price:
    From €44.99
    In Stock: 0 pc.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. 9B 0542 rokturu ass bez šķēluma ugunsdrošiem rokturiem, 9x120 mm, cinkota
    9B 0542 rokturu ass bez šķēluma ugunsdrošiem rokturiem, 9x120 mm, cinkota
    Code: SB00020818
    Art. Nr.: 0542/0912/00
    Price:
    From €1.90
    In Stock: 18 pc.
  2. Visma Quote
    9B spindle without split for fireproof handle , 9x140 mm
    9B spindle without split for fireproof handle , 9x140 mm
    Code: SB00011051
    Art. Nr.: 0542/0914/00
    Price:
    From €1.90
    In Stock: 1 pc.
  3. Visma Quote
    9B roktura ass bez šķēluma ugunsdrošiem rokturiem, 9x160 mm, cinkota
    9B roktura ass bez šķēluma ugunsdrošiem rokturiem, 9x160 mm, cinkota
    Code: SB00023929
    Art. Nr.: 0542/0916/00
    Price:
    From €3.29
    In Stock: 0 pc.
Manufacturer DIECKMANN
Series ARES
material aluminium anodised
leaf material for framed doors
purpose for interior doors
construction one-sided handle female part on rose or backplate
position of door handle offset (for finger protection)
load capacity high
class as per EN 1906 class 4
suitable for emergency exits complies with 179 - emergency door equipment
fire safety fire safety certified according to EN1906
door direction universal use for DIN right and left hand doors
handle spring integrated holding spring to cushion the push and pull forces
handle construction Rozetes konstrukcijā stabili stiprināts nospiežams
material: sub-construction steel
compatibility standard German (DIN)
handle length 143 mm
handle square spindle size 9 mm
distance from leaf surface to outer edge of handle 69.5 mm
backplate/rose shape oval
backplate/rose thickness 14.5 mm
backplate/rose size 34 x 75 mm
installation type screw on
fastening type covered
fastening elements must be ordered separately
