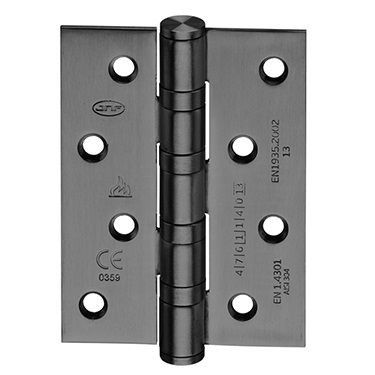

Universal butt hinges IN.05.020.100.CF
Product code
MB00001216-M
All prices include VAT
From
€8.95
Only %1 left
Universal hinges for non-rebated doors with 4 ball bearings. Suitable also for fire safety doors.
Maximum load capacity: 120 kg (3 hinges on one leaf)
Maximum load capacity: 120 kg (3 hinges on one leaf)
Questions and answers
Universal butt hinges IN.05.020.100.CF
Manufacturer - JNF (Portugāle)
Manufacturer - JNF (Portugāle)
-
- suitable for fire safety doors
- suitable for both left and right hand doors
- with 4 ball bearings
- max leaf wight: 120 kg (3 hinges per leaf)
- size: 75 x 100 mm
- thickness: 3 mm
- roll diameter: 14 mm
- hinge classification code according to DIN EN 1935: 4 7 6 1 1 4 0 13
- material:
-
-
- stainless steel (ECO, AISI 201)
- stainless steel, gold coated
- stainless steel, copper coated
- stainless steel, anthracite tone
-
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Universal hinge, 75x100 mm, stainless steel satin anthraciteCode: SB00022480Art. Nr.: IN05020100CFSBPrice:From €8.95In Stock: 29 pc.
| Manufacturer | JNF |
|---|---|
| hinge type | standard hinge |
| hinge shape | rectangular |
| door construction | for non-rebated doors |
| door direction | universal use for DIN right and left hand doors |
| class as per EN 1935 | class 4 |
| fire safety | suitable for fire and smoke safety doors |
| material thickness | 3 mm |
| leaf material | wood |
| load capacity | middle |
| leaf maximum weight | 120 kg |
| suitable for aluminium frames | suitable |
| suitable for steel frames | suitable |
| suitable for industrial frames | suitable |
| suitable for timber frames | suitable |
| anti-corrosion resistance | class 4 according to EN 1935 - very high |
| adjustment | not adjustable |
| groove for leaf seal | no |
| anti-intruder protection | no |
| knuckle diameter | 14 mm |
| height | 100 mm |
| width | 75 mm |
| maintenance | not required (self-lubricating bearings) |
| installation template | available for sale or rent |
| material | stainless steel |
