Receiver STV75/56 3-D

Product code
MB00000493
BASYS
main product photo
All prices include VAT
From €26.26
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
with industry profesionals
Book a consultation
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Service
Manufacturers' catalogues, product documentation etc.

Receiver STV75/56 3-D

Manufacturer - BaSys (Germany)

  • suitable for wooden and hollow-core door frame
  • 3-dimensional adjustment, 3 mm in all directions
  • integrated pull-out protection
  • solid steel or stainless steel front plate, material thickness: 3 mm
  • compatible with all BaSys heavy duty hinges with 56 mm connection
  • size: 220 x 24/24,5 mm
  • screws: Spax 5
  • max load: 150 kg (pair)
  • avaliable finishes:
    • stainless steel brushed
    • mat black RAL9005

    •

Montāžas instrukcijas
OBJECTA 3-D uztverošo konstrukciju regulēšana OBJECTA 3-D uztverošo konstrukciju regulēšana

All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

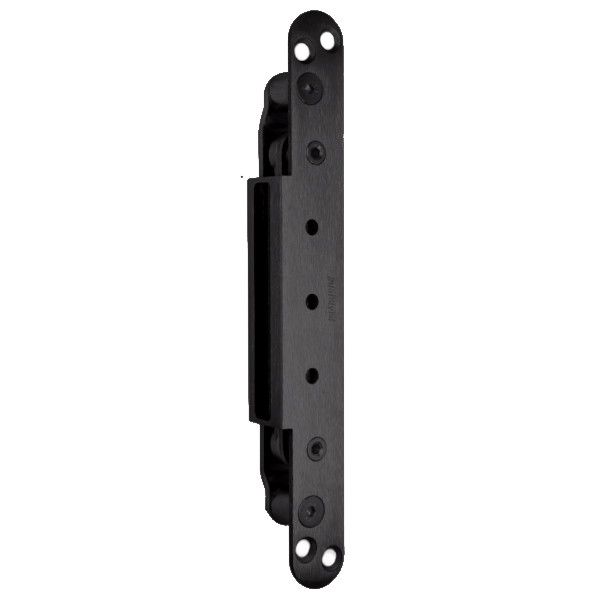

  1. STV75/56 3-D receiver, black RAL9005
    STV75/56 3-D receiver, black RAL9005
    Code: SB00021073
    Art. Nr.: S20040
    Price:
    From €28.73
    In Stock: 0 pc.
    Visma Quote

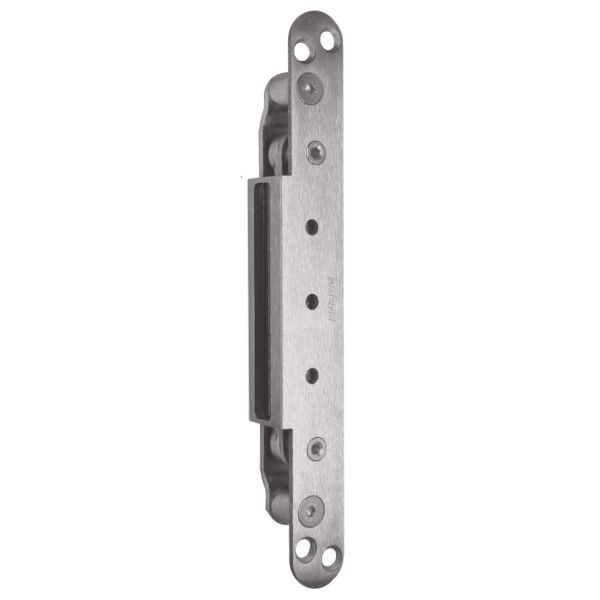

  2. STV75/56 3-D receiver, stainless steel
    STV75/56 3-D receiver, stainless steel
    Code: SB00016171
    Art. Nr.: 036625
    Price:
    From €26.26
    In Stock: 21 pc.
Manufacturer BASYS
hinge type lower part
hinge shape rounded
door direction universal use for DIN right and left hand doors
door construction for non-rebated and rebated doors
load capacity high
bundling options compatible with all BaSys heavy duty hinges with grip
anti-intruder protection yes
leaf maximum weight 150 kg
height 220 mm
width 24 mm
material thickness 3 mm
suitable for aluminium frames suitable
suitable for steel frames suitable
suitable for industrial frames suitable
suitable for timber frames suitable
anti-corrosion resistance class 4 according to EN 1935 - very high
class as per EN 1935 class 2
corner radius R12
fire safety suitable for fire and smoke safety doors
adjustment adjustable
maintenance recommended 1x a year
installation template available for sale or rent
fastening elements must be ordered separately
material stainless steel
