Gate closer DIREKT 200/600

Product code
MB00008995
All prices include VAT
From €440.44
From €440.44
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.

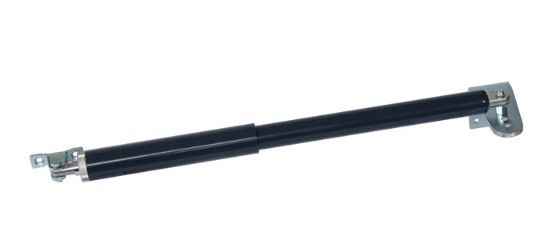

Gate closer DIREKT 200
Manufacturer - DICTATOR (Germany)

    • operates without guide rail and link arm
    • piston rod surface: chrome-plated or stainless steel (V2A)
    • cylinder surface: stainless steel (V2A) or steel with black, white or silver-tone coating
    • opening angle max. 110°
    • leaf weight: up to 100 kg
    • leaf height: up to 2500 mm (with 3 hinges)
    • leaf width: from 750 mm to 1500 mm
    • closing force: approx. 10 - 60 Nm (depending on installation)
    • closing speed: continuous adjustment

Advantages
  • safe and controlled gate closing
  • minimum risk of injury caused by the door closing too fast (ex. trapping fingers or door slamming on legs)
  • the gate always closes reliably and securely, guaranteeing, for instance, that children cannot exit the childcare facility unattended
  • straightforward installation - as easy as for standard closers
  • hydraulic oil (used also in aviation) minimises changes in closing settings due to variations in temperature
  • suitable for use in gates with various types of hinges
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Gate closer DIREKT 200 600N, black
    Gate closer DIREKT 200 600N, black
    Code: SB00014483
    Art. Nr.: 392370-2
    Price:
    From €440.44
    In Stock: 0 pc.
application for gates
closer operating type hydraulic closer
closer type telescopic door closer
closing force 600 N
closing speed adjustable
doorstop no
hold open no
installation type to be screwed on door leaf/frame
leaf height up to 2500 mm (with 3 hinges)
leaf maximum weight 100 kg
maximum door width up to 1500 mm
maximum opening angle 110°
Manufacturer DICTATOR TECHNIK
required force 10-60 Nm (depending on installation)
throw 200 mm
