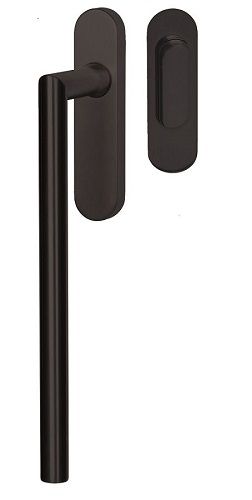

Balcony door handle RONNY
Manufacturer - Südmetall (Germany)
-
- non-locking handle with flush sliding grip for lift & slide doors
- stop-in positions at 90°
- handle firmly fixed into rose construction
- concealed M6 screws
- spindle: 10 mm
- suitable for door thickness of 74-92 mm
- handle length: 250 mm
- handle diameter: 22 mm
- fastening lugs: Ø10 mm
- handle rose size: 32 x 159 mm
- handle rose thickness: 12 mm
- sliding grip size: 35 x 105 mm
- sliding grip groove: 25 x 90 mm
- groove depth: 15 mm
- material:
-
-
- stainless steel textured matt, blackened
-
- Products
- Price
- In Stock
- Quantity
-
RONNY balcony door handle, black steel lookCode: SB00005247Art. Nr.: 32.84.9540Price:From €249.26In Stock: 0 set
Manufacturer | SÜDMETALL |
---|---|
material | stainless steel |
purpose | for sliding/lift-up balcony doors and facade leaves |
fastening type | concealed screw fitting |
installation type | screw-on base with a click-on rose |
construction | non-lockable handle + outer sliding grip |
material: sub-construction | metal |
opposite side handle | Laiviņas tipa rokturis iefrēzējams 35 x 105 mm |
function | locking / non-locking |
rose type | standard |
backplate/rose shape | oval |
shape | L-shape |
handle diameter | 22 mm |
handle length | 250 mm |
backplate/rose size | 32 x 159 mm |
stop-in positions | 90° |
durability in accordance with EN 13126 | not certified |
centring lug diameter | 10 mm |
fastening centre distance | 80 mm |
door thickness | 74-92 mm |
distance from leaf surface to outer edge of handle | 73 mm |
backplate/rose thickness | 12 mm |
handle square spindle size | 10 mm |
