Door handle RONNY II SQUARE-LS

Product code
MB00001189
All prices include VAT
From €65.70
From €65.70
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Stainless steel door handle RONNY II SQUARE-LS
Manufacturer - Südmetall (Germany)

    • stable metal sub-construction
    • dowel construction, screwless concealed fastening
    • set suitable for heavy-duty doors, corresponds to grade 3 according to EN 1906
    • handle fastening without fixing screw, installation type: Velox-FIX
    • backplate thickness: 2 mm
    • possible mounting on leaf or flush mounting
    • keyhole options: PZ, BB, WC
    • centre distance: PZ - 72 mm, BB - 72 mm, WC - 78 mm
    • spindle square: 8 mm
    • handle length: 135 mm
    • backplate size: 235 x 40 mm
    • door thickness: 38 - 42 mm
    • handle diameter: approx. 20 mm
    • material:
      • stainless steel
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

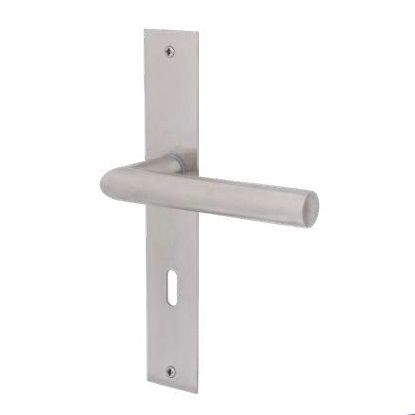

  1. RONNY II Square-LS handle set. BB 72mm, stainless steel
    RONNY II Square-LS handle set. BB 72mm, stainless steel
    Code: SB00004911
    Art. Nr.: 54 32.45.0300
    Price:
    From €65.70
    In Stock: 0 set

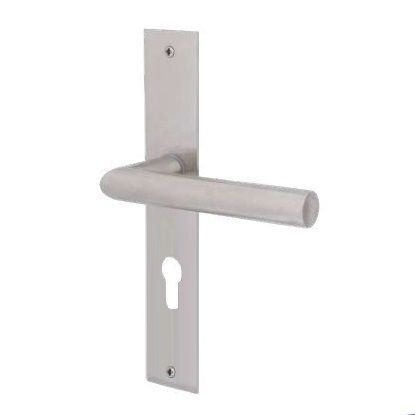

  2. RONNY II Square-LS handle set. PZ 72mm, stainless steel
    RONNY II Square-LS handle set. PZ 72mm, stainless steel
    Code: SB00004912
    Art. Nr.: 54 32.45.0310
    Price:
    From €65.70
    In Stock: 0 set

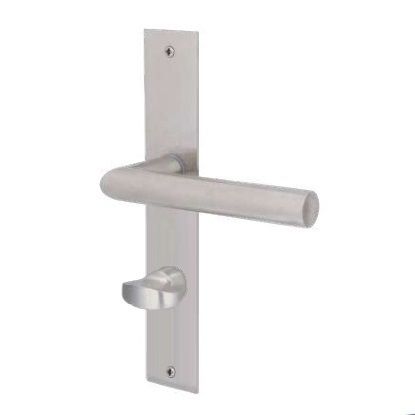

  3. RONNY II Square-LS handle set. WC, stainless steel
    RONNY II Square-LS handle set. WC, stainless steel
    Code: SB00004913
    Art. Nr.: 54 32.45.0320
    Price:
    From €86.64
    In Stock: 0 set
backplate/rose shape square
backplate/rose size 235 x 40 mm
backplate/rose thickness 2 mm
centre distance WC 78 mm
centre distance BB 72 mm
centre distance PZ 72 mm
class as per EN 1906 class 3
compatibility standard German (DIN)
construction lever handles on both sides
distance from leaf surface to outer edge of handle 56 mm
door direction universal use for DIN right and left hand doors
door thickness 38-42 mm
fastening centre distance 210 mm
fastening type concealed, dowel technology
fire safety not suitable for fire safety doors
handle diameter 20 mm
handle length 135 mm
handle square spindle size 8 mm
installation type screw on
leaf material for wooden and metal doors
load capacity high
locking function PZ / BB / WC
Manufacturer SÜDMETALL
material stainless steel
material: sub-construction metal
purpose for interior doors
set with long backplates
